Socomec 38613020
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

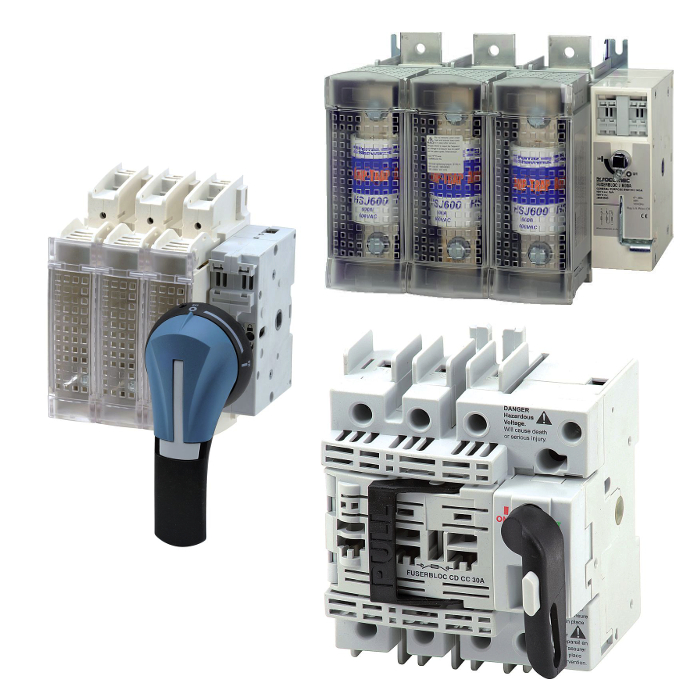

FUSE COMBINATION SWITCH, 200A, 3-pole, front or side operated, base mountable, class J, handle and shaft not includedFUSERBLOC UL 200A 3-poles
Socomec 38613020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates and Declaration
- Conformity to standard #1
- UL98
- Conformity to standard #4
- E201138 Vol. 1 Sec. 74
- Proposition 65 California
- WARNING This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to : www.P65Warnings.ca.gov
Connection Terminals
- Max. connection section / AWG
- 300MCM
- Min. connection section / AWG
- #6
Max. Motor Hp
- DC FLA motor max. / 125 VDC (Hp/A)
- 15/112
- DC FLA motor max. / 250 VDC (Hp/A)
- 40/140
- FLA 3 ph motor max. / 220-240 VAC
- 60/154
- FLA 3 ph motor max. / 440-480 VAC
- 125/156
- FLA 3 ph motor max. / 600 VAC
- 150/144
Mechanical Characteristics
- Endurance (number of operating cycles)
- 8000
- Operating torque (lbs.in/Nm)
- 90/10.2
Short-Circuit Capacity
- Max fuse rating (A)
- 200
- Short circuit rating at 600 VAC (kA)
- 200
- Type of fuse
- J
Specifications
- Country of Origin
- Tunisia
- Number of Poles
- 3
- UL General use rating (A)
- 200
