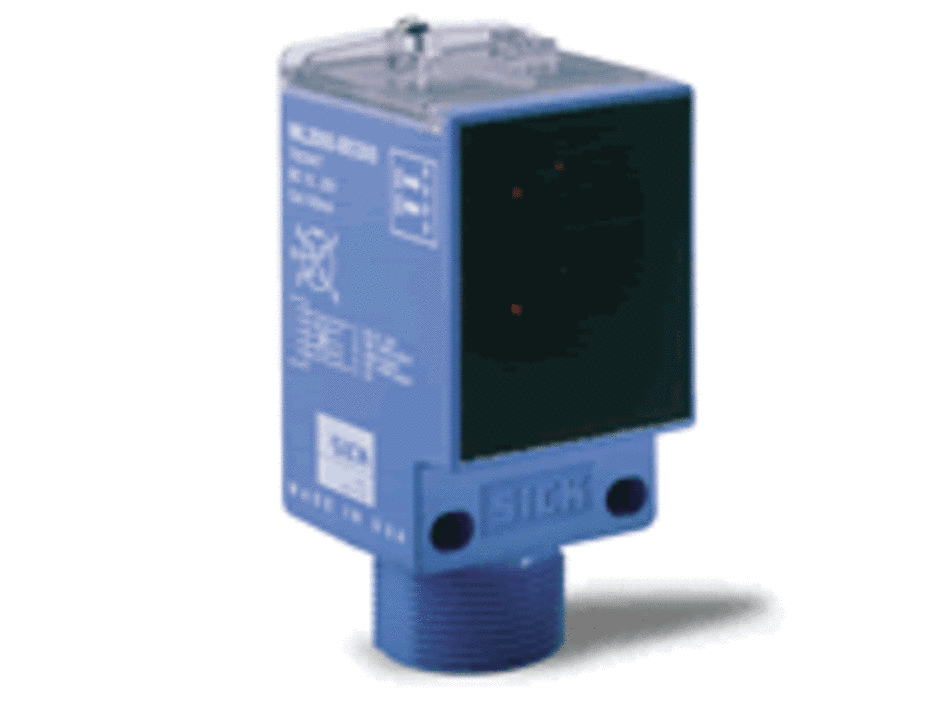

SICK 7024002
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SICK 7024002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ECl@ss 5.0
- 27270902
- ECl@ss 5.1.4
- 27270902
- ECl@ss 6.0
- 27270902
- ECl@ss 6.2
- 27270902
- ECl@ss 7.0
- 27270902
- ECl@ss 8.0
- 27270902
- ECl@ss 8.1
- 27270902
- ECl@ss 9.0
- 27270902
- ETIM 5.0
- EC002717
- ETIM 6.0
- EC002717
- UNSPSC 16.0901
- 39121528
Features
- Adjustment
- Potentiometer
- Angle of Dispersion
- Approx. 1.3°
- Dimensions (W x H x D)
- 45 mm x 73.7 mm x 48.6 mm
- Housing Design (Light emission)
- Rectangular
- Light Source
- LED (Average service life: 100,000 h at TU = +25 °C)
- Light Spot Size (distance)
- Ø 320 mm (14 m)
- Sensing Range
- 0 m ... 15 m (Reflector PL80A)
- Sensing Range Max.
- 0 m ... 15 m (Reflector PL80A)
- Sensor/Detection Principle
- Photoelectric retro-reflective sensor
- Type of Light
- Visible red light
- Wave Length
- 660 nm
Mechanical/Electronics
- Alarm output
- PNP
- Ambient Operating Temperature
- –25 °C ... +40 °C
- Ambient Storage Temperature
- –40 °C ... +70 °C
- Circuit Protection
- D (D = outputs overcurrent and short-circuit protected)
- C (C = interference suppression)
- A (A = VS connections reverse-polarity protected)
- Connection Type
- Male connector M12, 4-pin
- Enclosure Rating
- IP 67
- Housing Material
- Glassfibre reinforced plastic plastic
- Output Current IMax.
- 100 mA
- Output Function
- Complementary
- Output Type
- PNP NPN
- Polarisation Filter
- Yes
- Power Consumption
- ≤ 80 mA (Without load)
- Protection Class
- II (Reference voltage: 50 V DC)
- Response Time
- ≤ 1 ms (Signal transit time with resistive load)
- Ripple
- ≤ 5 V (May not exceed or fall below Uv tolerances)
- Signal Voltage PNP HIGH/LOW
- Approx. VS – 2.0 V / 0 V
- Supply Voltage
- 10 V DC ... 30 V DC (Limit values)
- Switching Frequency
- 500 Hz (With light/dark ratio 1:1)
- Switching Mode
- Light/dark switching
- Switching Mode Selector
- Selectable via light/dark selector
- UL File No.
- 242366 & cUL No. NRKH7.E147756
- Weight
- 150 g
