SCHUNK 324784
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

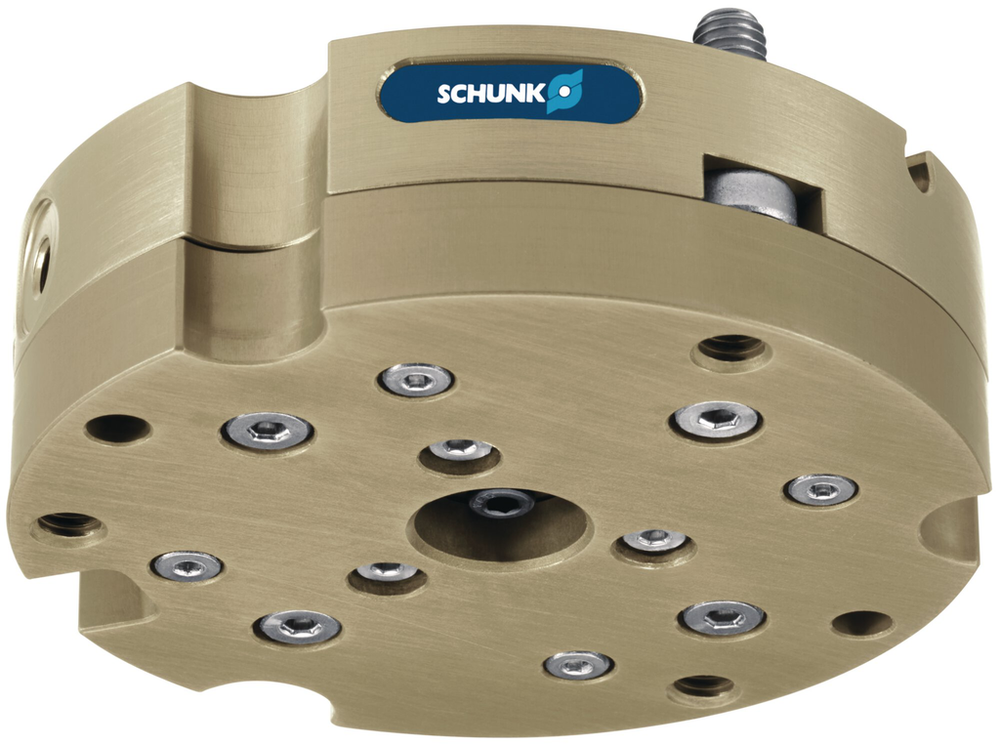

Tolerance compensation unit TCU-Z, Size: 080, with locking, Direct connection to*: PZN-plus 80 - TCU-Z-080-3-MV
SCHUNK 324784 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Deflection X
- ± 1 °
- Deflection Y
- ± 1 °
- Deflection Z
- ± 1 °
- Diameter D
- 80 mm
- Direct connection to*
- PZN-plus 80
- Hardness of the elastomer
- 68 Shore
- Height Z
- 24.1 mm
- Locking
- with locking
- Locking moment Fz
- 100 N
- Locking moment Mx
- 5 Nm
- Locking moment My
- 5 Nm
- Locking moment Mz
- 6 Nm
- max.
- 1500 N
- 100 N
- Max. ambient temperature
- 90 °C
- Max. force Fd
- 1500 N
- Max. operating pressure
- 8 bar
- Min. ambient temperature
- -10 °C
- Min. operating pressure
- 4 bar
- Moment Mx max.
- 35 Nm
- Moment My max.
- 35 Nm
- Moment Mz max.
- 40 Nm
- Repeat accuracy
- 0.05 mm
- Weight
- 0.25 kg
- Workpiece weight
- 10 kg
