SCHUNK 324464
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

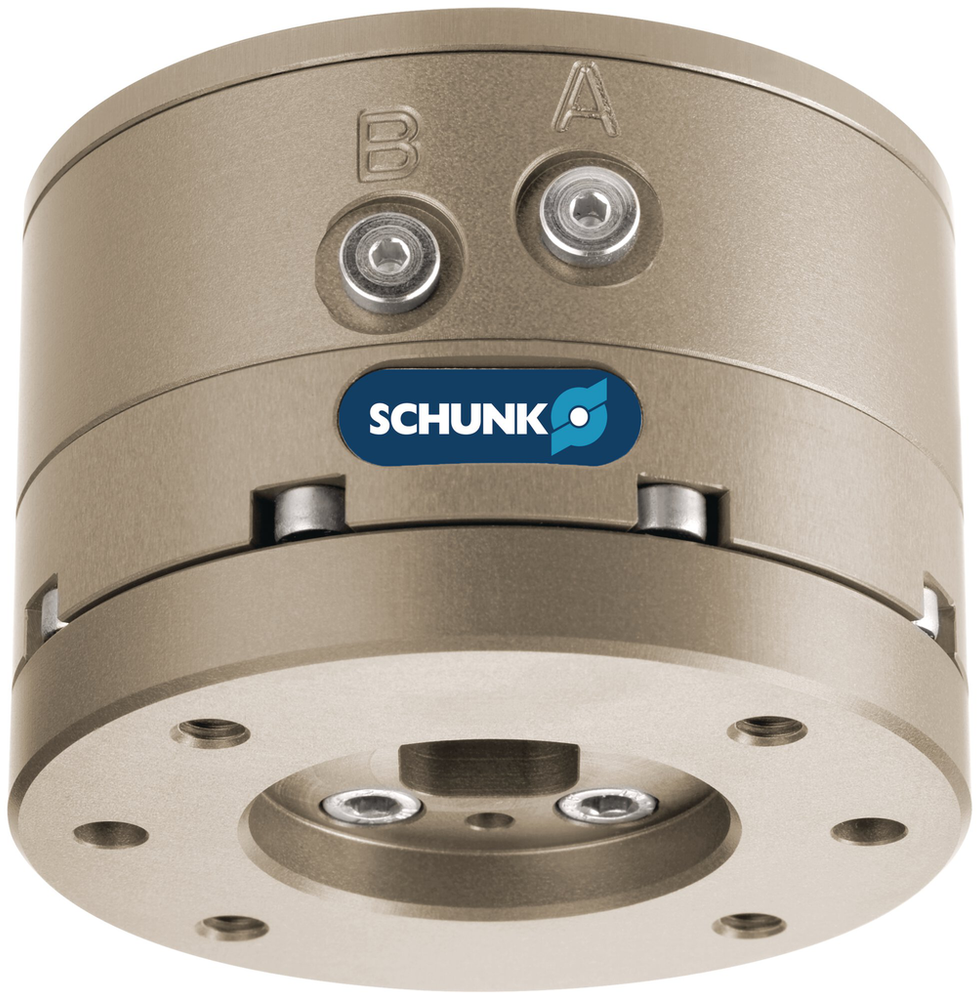

Compensation unit XY AGE-XY, Size: 063 - AGE-XY-063-P
SCHUNK 324464 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Compensation XY
- ± 3 mm
- Deflection rotatory
- ± 12 °
- Diameter D
- 80 mm
- Force Fz max.
- 450 N
- Height Z
- 56 mm
- Locking force
- 370 N
- max.
- 2600 N
- 450 N
- Max. ambient temperature
- 60 °C
- Max. distance shifting force Z
- 160 mm
- Max. force Fd
- 2600 N
- Max. load force locked
- 200 N
- Max. operating pressure
- 8 bar
- Max. radial force, position storage
- 50 N
- Min. ambient temperature
- 5 °C
- Min. operating pressure
- 2.5 bar
- Moment Mx max.
- 26 Nm
- Moment My max.
- 26 Nm
- Moment Mz max.
- 6 Nm
- Nominal operating pressure
- 6 bar
- Position memory piston force
- 235 N
- Recommended handling weight, horizontal
- 6 kg
- Recommended handling weight position storage
- 1.8 kg
- Recommended handling weight, vertical
- 9 kg
- Repeat accuracy
- 0.1 mm
- Robot-side connection
- ISO 9409-1-63-4-M6
- Rotation moment position storage
- 1.7 Nm
- Weight
- 0.85 kg
- Workpiece weight
- 9 kg
