SCHUNK 315828
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

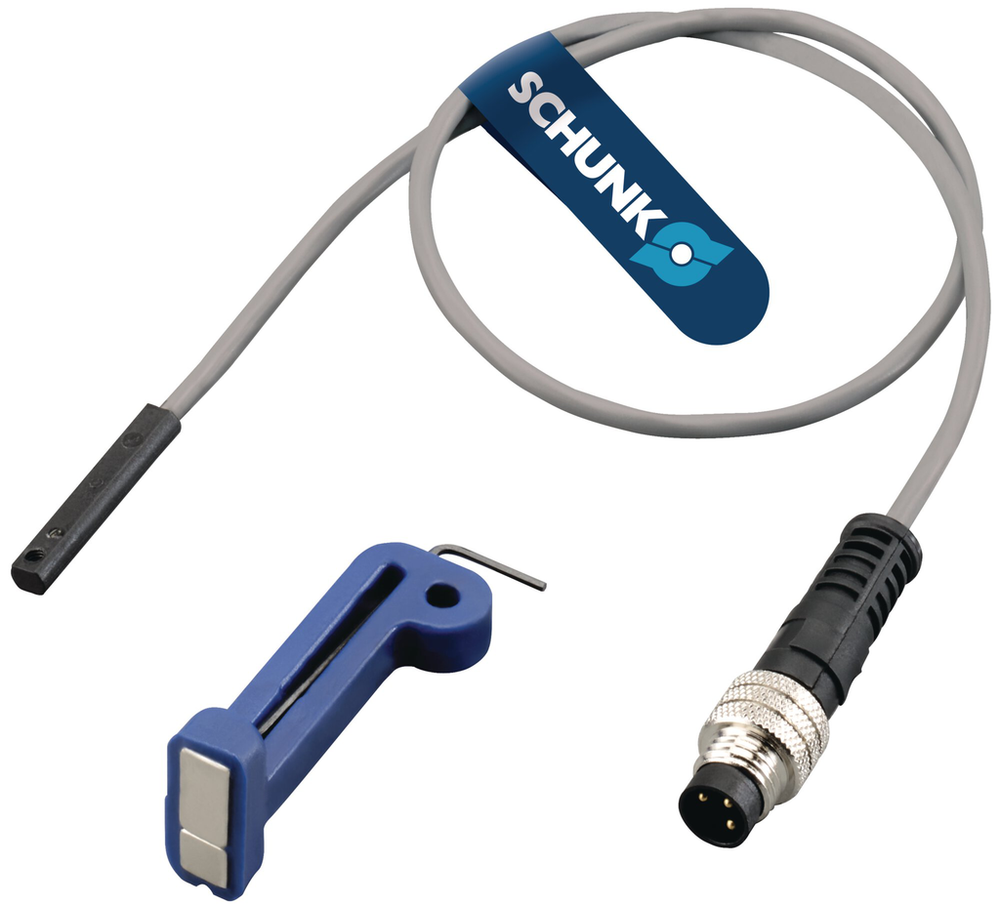

Analog magnetic switch MMS 22-A, Teach function, C-slot - MMS 22-A-10V-M12
SCHUNK 315828 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable connector/cable end
- M12 connector, 3-pin
- Cable diameter
- 2.35 mm
- Cable length
- 0.31 m
- Cable sheath material
- PUR
- Cable shielding
- yes
- CE
- yes
- Drilling emulsion resistance *
- yes
- Electrical connection
- M12 connector, 3-pin
- Housing material
- GV-5H (PA), black
- LED display in sensor
- yes
- Linearity
- 15 %
- Max. ambient temperature
- 55 °C
- Max. output voltage
- 10 V
- Max. ripple (% of Ue)
- <2 % Vss
- Max. voltage
- 30 V
- Measuring principle
- magnetic
- Min. ambient temperature
- 5 °C
- Min. load resistance RL
- 10 kΩ
- Min. operating voltage
- 15 V
- Min. output voltage
- 0.3 V
- Nominal current
- 15 mA
- Nominal voltage
- 24 V
- Number of switching points
- Analog
- Protected against polarity reversal
- yes
- Protection class
- 3
- Repeat accuracy R of final value maximum
- < 3 %
- Response time / typ. Switching time
- 50 ms
- Short circuit protection
- yes
- Teach function
- yes
- Type of voltage
- DC
- Voltage output
- yes
- Weight
- 0.01 kg
