SCHUNK 306101
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

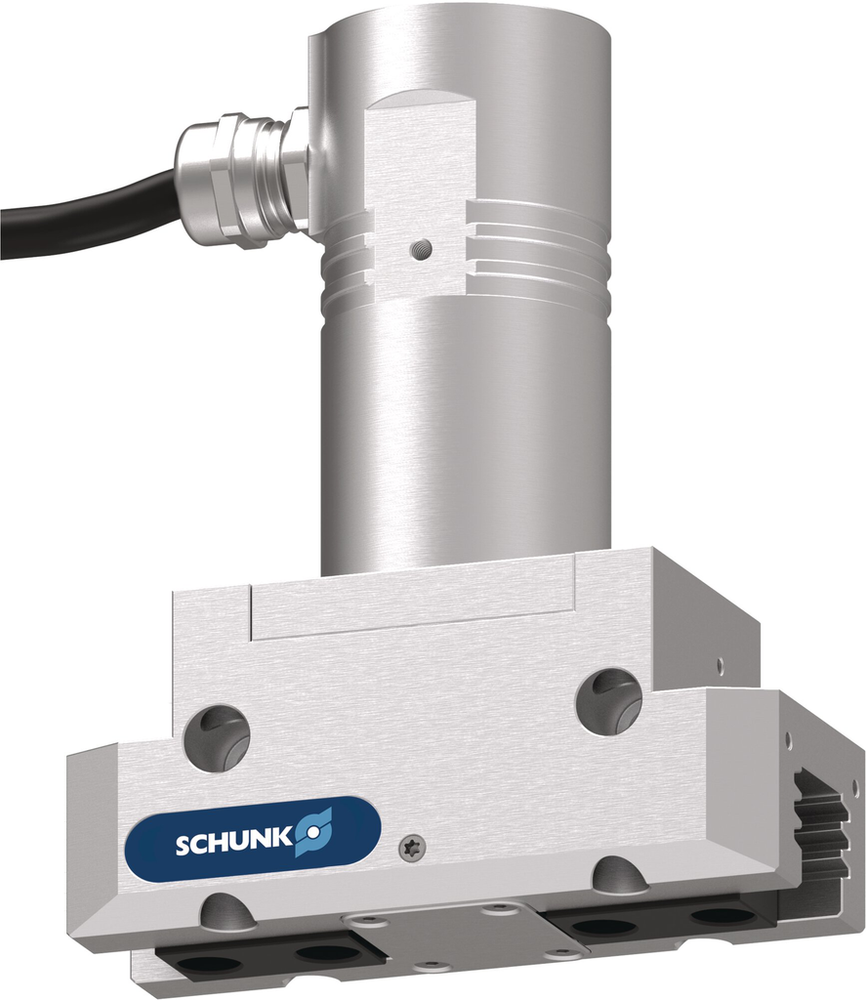

Universal gripper EGN, Size: 100, electrical, Communication interface: See controller ECM - EGN 100
SCHUNK 306101 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Closing time
- 0.35 s
- Communication interface
- See controller ECM
- Controller electronics
- external
- Controller type
- ECM-EGN100
- Height Z
- 148 mm
- IP protection class
- 41
- Length X
- 120 mm
- Max. acceleration
- 1500 mm/s²
- Max. air purge pressure
- 1 bar
- Max. ambient temperature
- 55 °C
- Max. axial force Fz max.
- 2000 N
- Max. current
- 4 A
- Max. gripping force
- 720 N
- Max. permissible finger length
- 125 mm
- Max. permissible weight per finger
- 1.1 kg
- Max. speed
- 80 mm/s
- Max. total current
- 4 A
- Min. air purge pressure
- 0.5 bar
- Min. ambient temperature
- 5 °C
- Min. gripping force
- 170 N
- Moment Mx max.
- 80 Nm
- Moment My max.
- 115 Nm
- Moment Mz max.
- 70 Nm
- Nominal current
- 1.8 A
- Nominal voltage
- 24 V DC
- Opening time
- 0.35 s
- Power supply
- 24 V DC
- Recommended workpiece weight
- 3.6 kg
- Repeat accuracy
- ± 0.01 mm
- Stroke per jaw
- 10 mm
- Weight
- 1.35 kg
- Width Y
- 50 mm
