SCHUNK 305201
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

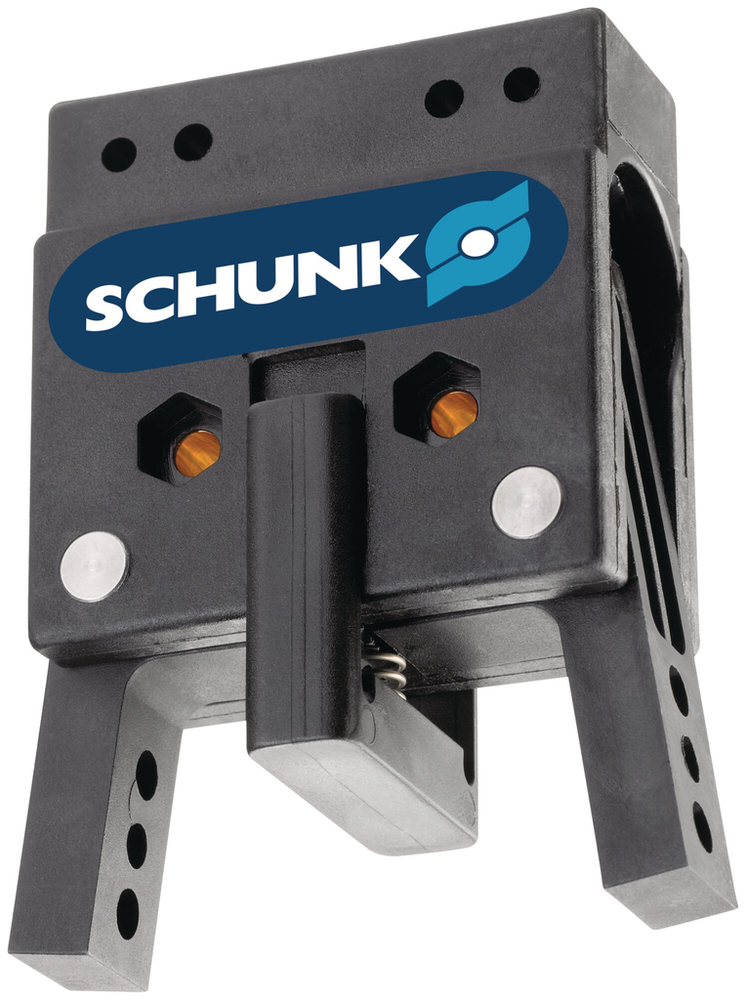

Angular gripper SGB, Size: 50, pneumatic - SGB 50
SCHUNK 305201 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Closed angle per jaw up to
- 2 °
- Closing force (with finger lengths of 0 mm)
- 825 N
- Closing moment
- 4.95 Nm
- Closing time
- 0.08 s
- Fluid consumption double stroke
- 1.8 cm³
- Height Z
- 50 mm
- IP protection class
- 20
- Length X
- 50 mm
- Max. ambient temperature
- 90 °C
- Max. axial force Fz max.
- 8 N
- Max. operating pressure
- 7 bar
- Max. permissible finger length
- 50 mm
- Max. permissible weight per finger
- 0.07 kg
- Min. ambient temperature
- 5 °C
- Min. operating pressure
- 4 bar
- Min. pressing on force
- 4 N
- Moment Mx max.
- 0.4 Nm
- Moment Mz max.
- 0.3 Nm
- Nominal operating pressure
- 6 bar
- Opening angle
- 8 °
- Opening angle per jaw
- 8 °
- Opening time
- 0.05 s
- Pressure stroke
- 5 mm
- Recommended workpiece weight
- 0.8 kg
- Repeat accuracy
- 0.1 mm
- Weight
- 0.06 kg
- Width Y
- 31.2 mm
