SCHUNK 304741
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

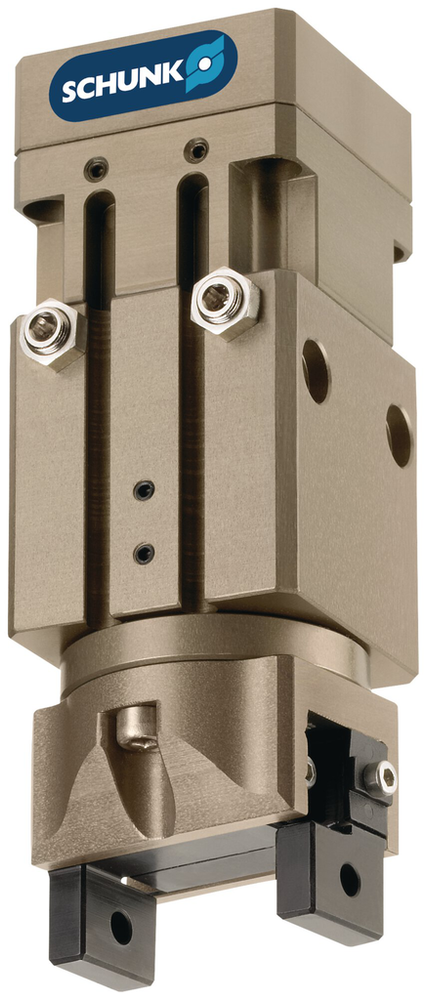

Rotary gripping module with parallel gripper GSM-P, Size: 40, pneumatic, with gripping force maintenance: AS, End position damping: hydr. damper - GSM-P 40-AS-S-090
SCHUNK 304741 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Air consumption for gripping
- 5.97 cm³
- Air consumption for swiveling
- 9 cm³
- Angle
- 90 of rotation
- Angle of rotation
- 90 °
- Closing force
- 87 N
- Closing time
- 0.03 s
- Damping for swiveling
- hydr. damper
- End position adjustability
- 90 °
- Height Z
- 123.4 mm
- IP protection class
- 30
- Length X
- 40 mm
- Max. ambient temperature
- 60 °C
- Max. axial force Fz max.
- 170 N
- Max. operating pressure
- 6.5 bar
- Max. permissible finger length
- 40 mm
- Max. permissible inertia of the set-up
- 125 kgmm²
- Max. permissible weight per finger
- 0.08 kg
- Min. ambient temperature
- 5 °C
- Min. operating pressure for gripping
- 4 bar
- Min. operating pressure for swiveling
- 4 bar
- Min. spring force
- 21 N
- Moment Mx max.
- 1.5 Nm
- Moment My max.
- 2 Nm
- Moment Mz max.
- 4 Nm
- Nominal operating pressure
- 6 bar
- Opening time
- 0.05 s
- Recommended workpiece weight
- 0.33 kg
- Repeat accuracy for gripping
- 0.02 mm
- Repeat accuracy for swiveling
- 0.1 °
- Shock absorber version
- yes
- Stroke per jaw
- 6 mm
- Swiveling time with medium-sized attached load**
- 0.14 s
- Torque
- 0.3 Nm
- Weight
- 0.5 kg
- Width Y
- 63.5 mm
