Description

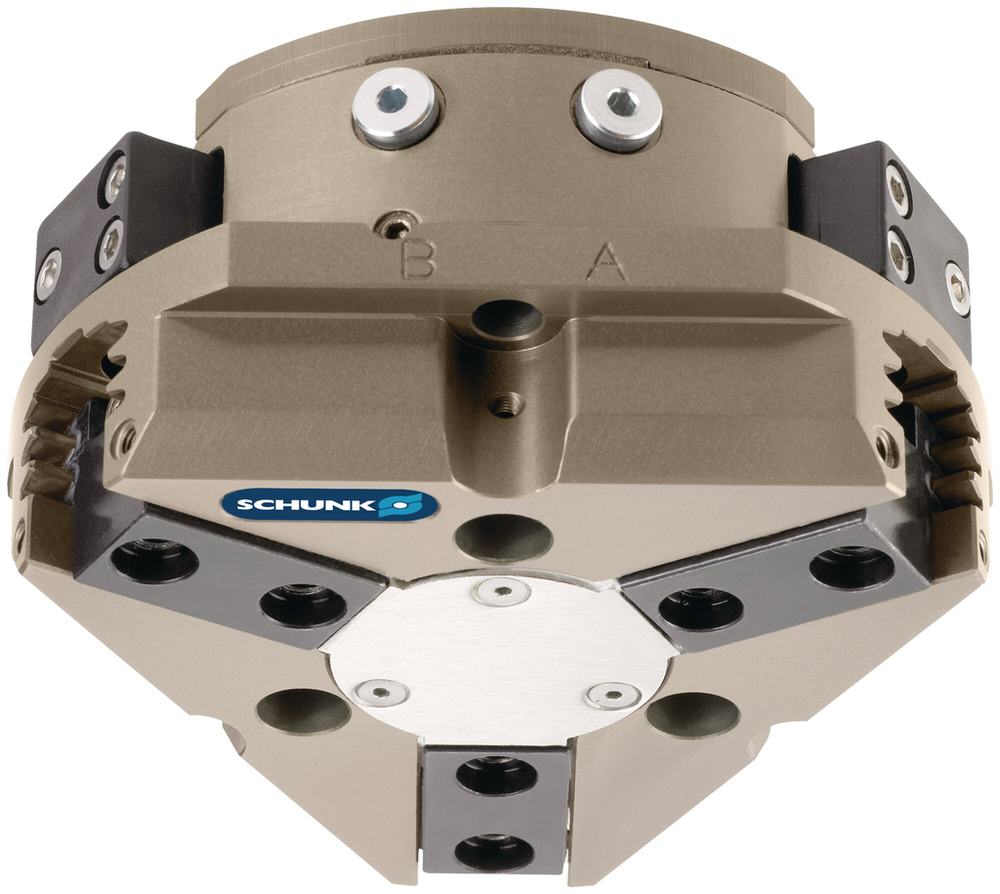

Universal gripper PZN-plus, Size: 80, pneumatic, with gripping force maintenance: IS - PZN-plus 80-1-IS
SCHUNK 303541 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cleanroom class ISO 14644-1
- 5
- Closing/opening time with spring
- 0.19 s
- Closing time
- 0.06 s
- Diameter D
- 96 mm
- Fluid consumption double stroke
- 108 cm³
- Height Z
- 64.3 mm
- IP protection class
- 40
- Max. air purge pressure
- 1 bar
- Max. ambient temperature
- 90 °C
- Max. axial force Fz max.
- 1500 N
- Max. operating pressure
- 6.5 bar
- Max. permissible finger length
- 105 mm
- Max. permissible weight per finger
- 0.6 kg
- Min. air purge pressure
- 0.5 bar
- Min. ambient temperature
- 5 °C
- Min. operating pressure
- 4 bar
- Min. spring force
- 370 N
- Moment Mx max.
- 60 Nm
- Moment My max.
- 95 Nm
- Moment Mz max.
- 55 Nm
- Nominal operating pressure
- 6 bar
- Opening force
- 1450 N
- Opening force (with finger lengths of 0 mm)
- 1701 N
- Opening time
- 0.04 s
- Recommended workpiece weight
- 5 kg
- Repeat accuracy
- 0.01 mm
- Stroke per jaw
- 8 mm
- Weight
- 0.96 kg
