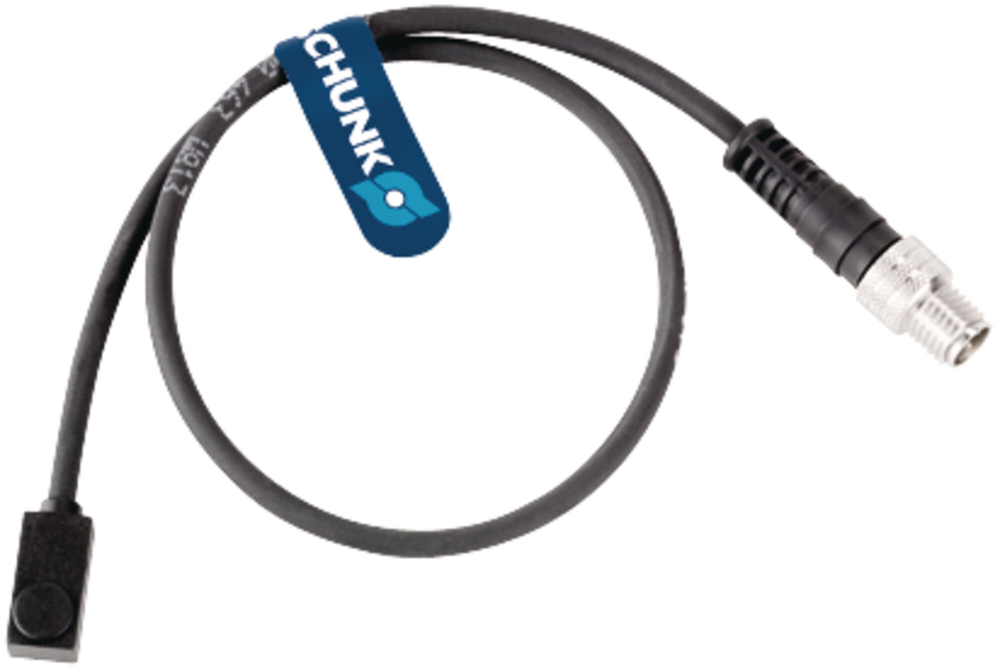

SCHUNK 301581
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
SCHUNK 301581 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable connector/cable end
- M12
- Cable diameter D
- 3.5 mm
- Cable length
- 30 cm
- Cable length L
- 30 cm
- Cable sheath material
- PUR
- Electrical connection
- M12
- Height
- 5 mm
- Housing material
- PA 6, black
- LED display in sensor
- no
- Max. ambient temperature
- 70 °C
- Max. operating voltage
- 36
- Max. switching current
- 0.2
- Max. switching frequency
- 1000 Hz
- Measuring principle
- inductive
- Min. ambient temperature
- -25 °C
- Min. bending radius (dynamic)
- 35 mm
- Min. bending radius (static)
- 17.5 mm
- Min. operating voltage
- 10
- Nominal voltage
- 24
- Protected against polarity reversal
- yes
- Protection class
- II
- Protection class IP (sensor, plugged)
- 67
- Short circuit protection
- yes
- Switching distance
- 1.5 mm
- Switching function
- Closer
- Switching hysterisis from the nominal switching distance
- < 10%
- Switching type
- PNP
- Type of switching
- PNP
- Type of voltage
- DC
- Voltage drop
- 1.5 V
- Weight
- 0.019
- Width
- 8 mm
Williams Automation sells SCHUNK parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
