Description

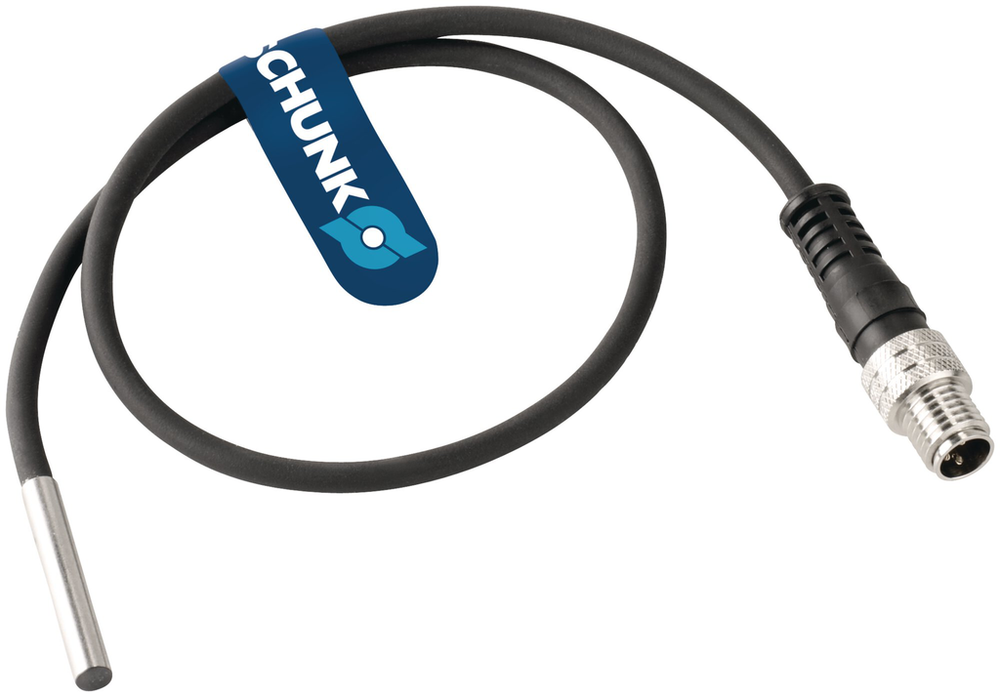

Inductive proximity switches IN - IN 40-O-M8
SCHUNK 301484 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable connector/cable end
- M8 connector, 3-pin
- Cable design (wire cross section / number of wires)
- 3x 0.14mm2
- Cable diameter D
- 3.3 mm
- Cable length
- 30 cm
- Cable length L
- 30 cm
- Cable sheath material
- PUR
- Drilling emulsion resistance *
- yes
- Electrical connection
- M8 connector, 3-pin
- Housing material
- stainless steel
- LED display in sensor
- yes
- Max. ambient temperature
- 70 °C
- Max. operating voltage
- 30
- Max. switching current
- 0.2
- Max. switching frequency
- 3000 Hz
- Measuring principle
- inductive
- Min. ambient temperature
- -25 °C
- Min. bending radius (dynamic)
- 34 mm
- Min. bending radius (static)
- 17 mm
- Min. operating voltage
- 10
- Nominal voltage
- 24
- Number of switching points
- 1
- Protected against polarity reversal
- yes
- Protection class IP (sensor, plugged)
- 67
- Sensor diameter
- 4 mm
- Short circuit protection
- yes
- Switching distance
- 0.8 mm
- Switching function
- Opener
- Switching hysterisis from the nominal switching distance
- < 5%
- Switching type
- PNP
- Type of switching
- PNP
- Type of voltage
- DC
- Voltage drop
- 0.6 V
- Weight
- 0.013
