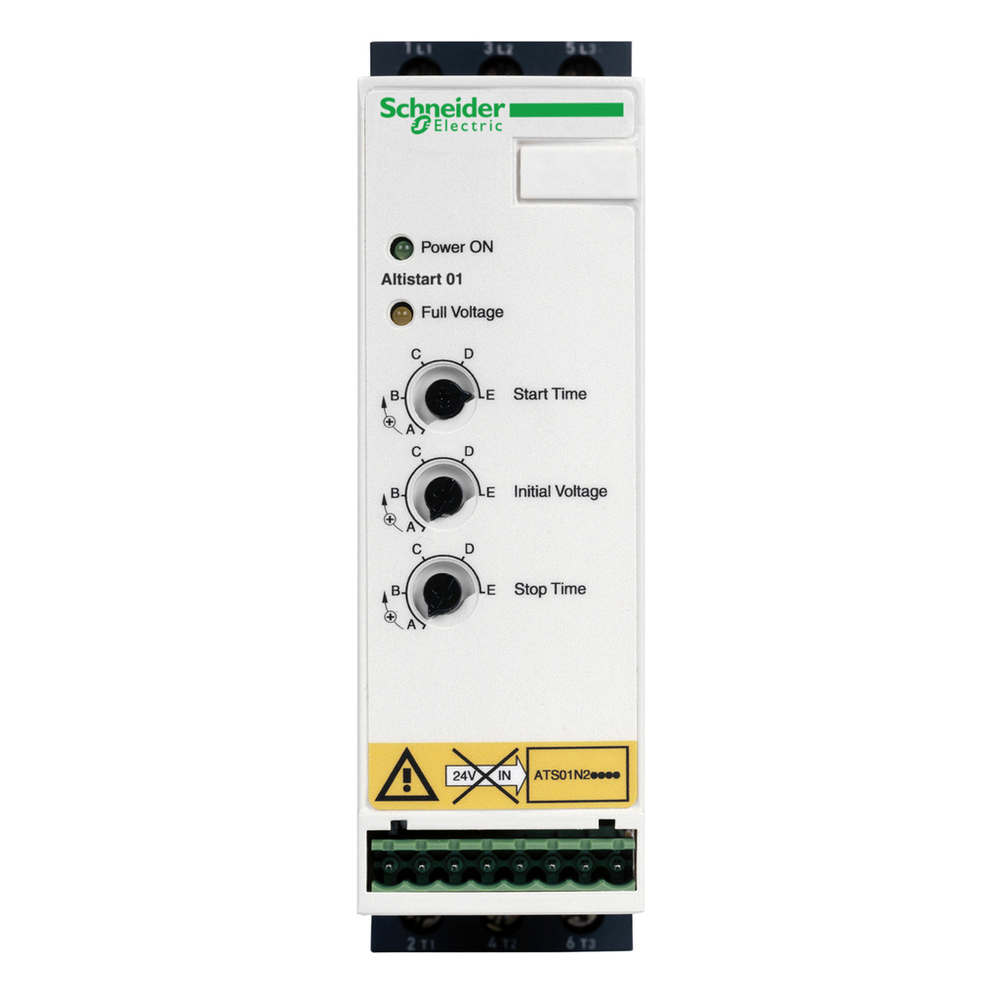

Schneider Electric ATS01N232QN

Complementary

• Assembly Style
  • with heat sink
• Compatibility Code
  • ATS01N2
• Deceleration Time Symb
  • adjustable from 1 to 10 s
• Depth
  • 131 mm
• Discrete Input Logic
  • positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
• Discrete Input Type
  • logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
• Discrete Input Voltage
  • 24...40 V
• Discrete Output Current
  • 2 A DC-13 || 3 A AC-15
• Discrete Output Type
  • open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
• Discrete Output Voltage
  • 24 V 6...30 V) open collector logic
• Display Type
  • 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
• Electrical Connection
  • 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible with cable end 1 1...6 mm² AWG 10 power circuit || screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit || screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit || 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
• Function Available
  • integrated bypass
• Height
  • 154 mm
• Marking
  • CE
• Maximum Switching Current
  • relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
• Minimum Switching Current
  • 10 mA 6 V DC relay outputs
• Motor Starter Type
  • soft starter
• Net Weight
  • 0.56 kg
• Network Frequency
  • 47.5...63 Hz
• Operating Position
  • vertical +/- 10 degree
• Output Voltage
  • <= power supply voltage
• Power Range
  • 15-25 kW 380-440 V 3 phase
• Starting Time
  • adjustable from 1 to 10 s || 1 s / 50 || 10 s / 5 || 5 s / 10
• Starting Torque
  • 30...80 % of starting torque of motor connected directly on the line supply
• Supply Frequency
  • 50...60 Hz - 5...5 %
• Supply Voltage Limits
  • 342-456 V
• Tightening Torque
  • 0.5-0.5 N.m || 1.9-2.5 N.m
• [Uc] Control Circuit Voltage
  • built into the starter
• Width
  • 45 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
• Ambient Air Temperature For Storage
  • -25-70 °C EN/IEC 60947-4-2
• Electromagnetic Compatibility
  • conducted and radiated emissions level B CISPR 11 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || micro-cuts and voltage fluctuation IEC 61000-4-11 || voltage/current impulse level 3 IEC 61000-4-5 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity EN 50082-1 || EMC immunity EN 50082-2 || harmonics IEC 1000-3-2 || harmonics IEC 1000-3-4 || immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
• Pollution Degree
  • 2 EN/IEC 60947-4-2
• Product Certifications
  • C-tick || CSA || CCC || GOST || UL || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
• Relative Humidity
  • 5-95 % without condensation or dripping water EN/IEC 60068-2-3
• Shock Resistance
  • 15 gn 11 ms EN/IEC 60068-2-27
• Standards
  • EN/IEC 60947-4-2
• Vibration Resistance
  • 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Toxic Heavy Metal Free
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Current Consumption
  • 160 A at nominal load
• Device Short Name
  • ATS01
• Icl Starter Rating
  • 32 A
• Motor Power Kw
  • 15 kW, 3 phase 380...415 V
• Phase
  • 3 phase
• Power Dissipation In W
  • 4.5 W at full load and at end of starting || 324.5 W in transient state
• Product Destination
  • asynchronous motors
• Product Or Component Type
  • soft starter
• Product Specific Application
  • simple machine
• Range Of Product
  • Altistart 01
• Type Of Start
  • start with voltage ramp
• [Us] Rated Supply Voltage
  • 380...415 V - 10...10 %
• Utilisation Category
  • AC-53B EN/IEC 60947-4-2
