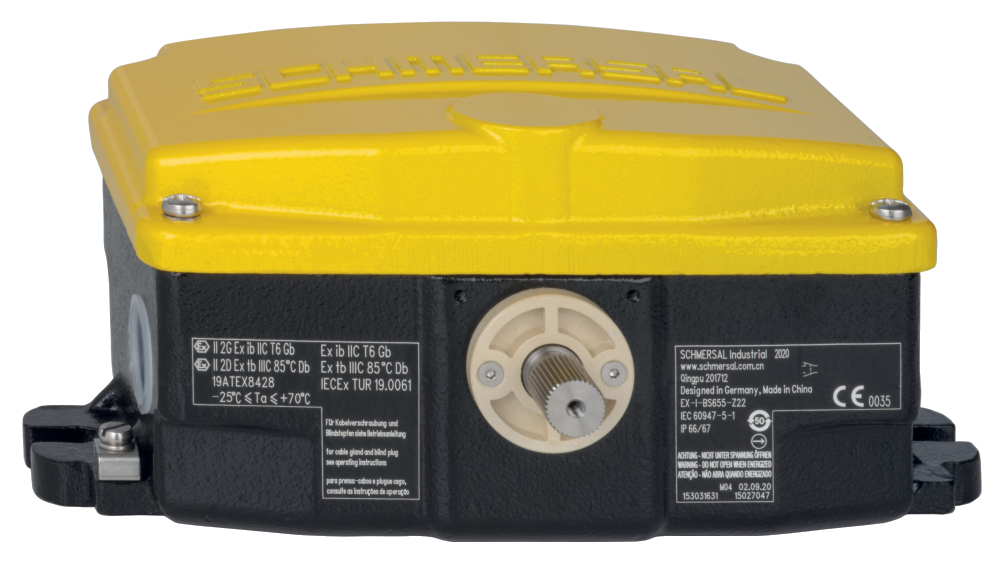

Schmersal 153038067
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
EX-BS655-Z22-DN-2D
Schmersal 153038067 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -40 ... +70 °C
- Degree of protection
- IP67 | IP66
- Protection class
- I
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 300 V
Approvals - Standards
- Certificates
- TÜV | ATEX | IEC Ex
Electrical data
- Material of the contacts, electrical
- Silver
- Switching principle
- Snap action
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- 3 A
- Utilisation category DC-13
- 3 A
- 24 VDC
Electrical data - Safety digital outputs
- Output current, (fail-safe output), maximum
- 0.25 A
Explosion protection
- Explosion protection category
- 2D
- Explosion protection designation
- II 2D Ex tb IIIC T80°C Db
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-31 | ABNT NBR IEC 60079-0 | ABNT NBR IEC 60079-31
- Explosion protection zones
- 21
General data
- Enclosure material
- Grey cast iron, painted
- Gross weight
- 5,072 g
- Material of the housing cover
- Grey cast iron, painted
- Standards
- EN 620 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5
General data - Features
- Number of auxiliary contacts
- 2
- Number of safety contacts
- 2
Mechanical data
- Mechanical life, minimum
- 100,000 Operations
Mechanical data - Connection technique
- Cable entry
- 2 x M25 x 1.5
- Cable section, maximum
- 2.5 mm², flexible
- Cable section, minimum
- 0.5 mm², flexible
- Termination
- Cage clamp
Other data
- Note (applications)
- Pull-wire emergency stop switches
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 100,000 Operations
