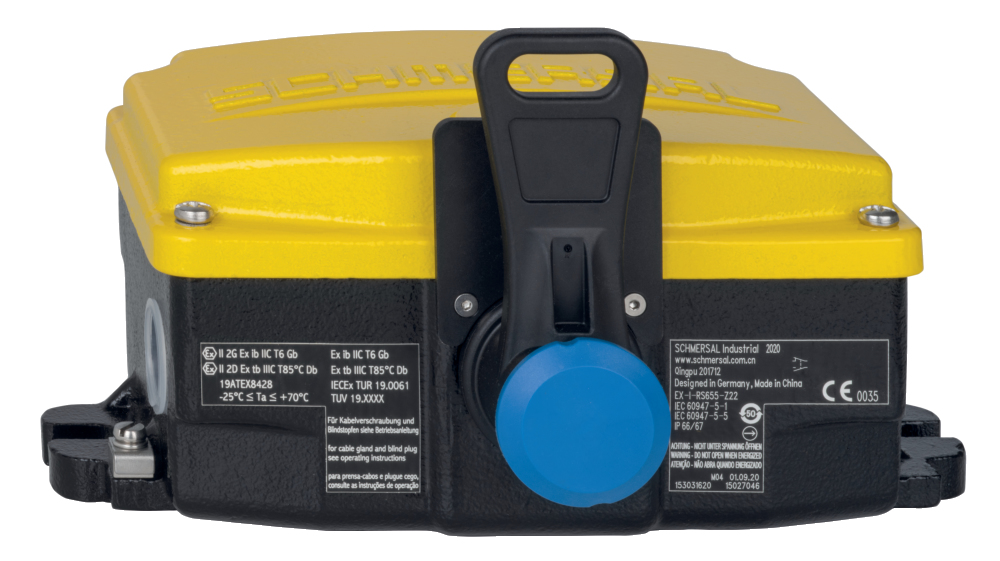

Schmersal 153038066
![Image of Schmersal 153038066](http://williamsautomation.com/cdn/shop/files/1837c87d1c28584d09f0f82d8ba83f101c5021c0-large_b89f5439-e536-497d-baee-92e2d14ae1c8_1000x1000.png?v=1725430663)
![](http://williamsautomation.com/cdn/shop/files/free-shipping.png?v=1704404895&width=400)
![](http://williamsautomation.com/cdn/shop/files/warranty.png?v=1704404905&width=400)
![](http://williamsautomation.com/cdn/shop/files/bbb.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/overnight.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/usa.png?v=1704404908&width=400)
Description
Schmersal 153038066 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -40 ... +70 °C
- Degree of protection
- IP67 | IP66
- Protection class
- I
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 300 V
Approvals - Standards
- Certificates
- TÜV | ATEX | IEC Ex
Electrical data
- Material of the contacts, electrical
- Silver
- Switching principle
- Snap action
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- 3 A
- Utilisation category DC-13
- 24 VDC
- 3 A
Explosion protection
- Explosion protection category
- 2D
- Explosion protection designation
- II 2D Ex tb IIIC T80°C Db
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-31 | ABNT NBR IEC 60079-0 | ABNT NBR IEC 60079-31
- Explosion protection zones
- 21
- Manufacturer declaration, zone
- 1 | 21
General data
- Enclosure material
- Grey cast iron, painted
- Gross weight
- 5,072 g
- Length of the wire, maximum
- 100 m
- Material of the housing cover
- Grey cast iron, painted
- Standards
- EN 620 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5
General data - Features
- Number of auxiliary contacts
- 2
- Number of safety contacts
- 2
Mechanical data
- Actuating element
- Roller lever N300
- Actuation direction
- Each time 75° right-hand side and left-hand side rotation
- Mechanical life, minimum
- 100,000 Operations
Mechanical data - Connection technique
- Cable entry
- 2 x M25 x 1.5
- Cable section, maximum
- 2.5 mm², flexible
- Cable section, minimum
- 0.5 mm², flexible
- Termination
- Cage clamp
Other data
- Note (applications)
- Pull-wire emergency stop switches
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 100,000 Operations
