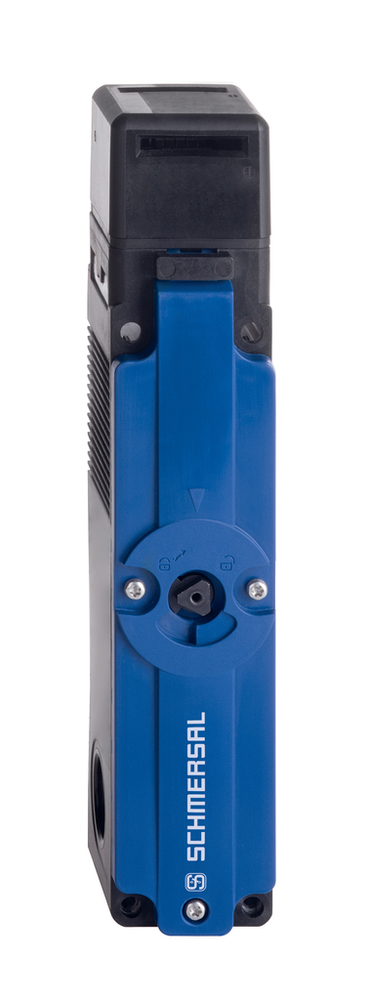

Schmersal 153032121
![Image of Schmersal 153032121](http://williamsautomation.com/cdn/shop/files/8909db6c4883b3404269d039cd944cee35953347-large_4680c8e3-2aea-4a88-aae5-f77020956099_1000x1000.png?v=1725430661)
![](http://williamsautomation.com/cdn/shop/files/free-shipping.png?v=1704404895&width=400)
![](http://williamsautomation.com/cdn/shop/files/warranty.png?v=1704404905&width=400)
![](http://williamsautomation.com/cdn/shop/files/bbb.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/overnight.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/usa.png?v=1704404908&width=400)
Description
Schmersal 153032121 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +55 °C
- Degree of protection
- IP65 | IP67
- Note (Relative humidity)
- non-condensing | non-icing
- Relative humidity, maximum
- 93 %
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -40 °C
Ambient conditions - Insulation values
- Degree of pollution
- 2
- Overvoltage category
- II
- Rated insulation voltage U
- 300 V
Approvals - Standards
- Certificates
- TÜV | CCC
Electrical data
- Electrical power consumption, maximum
- 8.5 W
- Material of the contacts, electrical
- Silver
- Rated control voltage
- 110 VAC
- Required rated short-circuit current
- 1,000 A
- Switching element
- Opener (NC)
- Switching frequency
- 1,000 /h
- Switching principle
- slow action, positive break NC contact
- Thermal test current
- 5 A
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
- Test pulse duration, maximum
- 5 ms
- Test pulse interval, minimum
- 50 ms
Electrical data - Safety contacts
- Current, Utilisation category AC-15
- 4 A
- Current, Utilisation category DC-13
- 4 A
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
General data
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Thermoplastic, Polyamide PA 6 GF
- Gross weight
- 583 g
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
General data - Features
- Manual release
- Yes
- Number of actuating directions
- 2
- Number of safety contacts
- 4
- Power to unlock
- Yes
Mechanical data
- Actuating speed, maximum
- 0.3 m/s
- Holding force F
- 1,500 N
- 1,950 N
- Latching force, approx.
- 50 N
- Mechanical life, minimum
- 1,000,000 Operations
- Mounting
- Screws
- Note
- Torx T10
- Positive break force, minimum
- 40 N
- Positive break force per NC contact, minimum
- 10 N
- Positive break travel
- 10 mm
- Tightening torque of the fastening screws for the housing cover, maximum
- 0.5 Nm
- Tightening torque of the fastening screws for the housing cover, minimum
- 0.5 Nm
- Type of the fixing screws
- 4x M5
Mechanical data - Connection technique
- Allowed type of cable
- solid single-wire | solid multi-wire | flexible
- Cable entry
- 3 x M20 x 1,5
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.25 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals
Mechanical data - Dimensions
- Height of sensor
- 204 mm
- Length of sensor
- 48 mm
- Width of sensor
- 40 mm
Note
- Note (Manual release)
- For maintenance, installation, etc. | By means of M5 triangular key
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately. | Slot cover for dust-proof covering of the opening not in use
