Description
BS656-Z22-DN

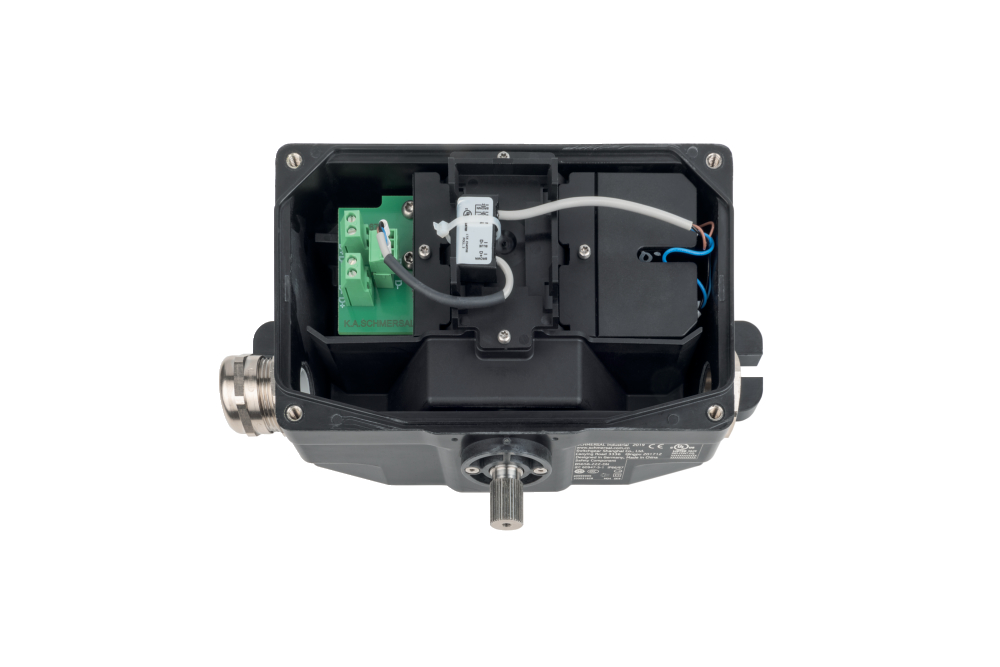

Schmersal 153031628 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -40 ... +70 °C
- Degree of protection
- IP67 | IP66
- Protection class
- II
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 300 V
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Rated operating voltage
- 24 VDC
- 230 VAC
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- 3 A
- Utilisation category DC-13
- 24 VDC
- 3 A
Electrical data - Dupline
- Cable section, maximum
- 2.5 mm², flexible | 4 mm², rigid
- Cable section, minimum
- 0.2 mm², rigid | 0.25 mm², flexible
- Current consumption
- 0.1 mA
- Rated impulse withstand voltage U
- 0.8 kV
- Rated operating voltage
- 8.2 VDC
General data
- Enclosure material
- thermosetting resin
- Gross weight
- 2,680 g
- Material of the housing cover
- thermosetting resin
- Standards
- EN 620 | EN IEC 60947-5-1
General data - Features
- Number of auxiliary contacts
- 2
- Number of safety contacts
- 2
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positionierschritte für den Betätiger
- 10 °
Mechanical data - Connection technique
- Cable entry
- 2 x M25 x 1.5
- Cable section, maximum
- 2.5 mm², flexible
- Cable section, minimum
- 0.5 mm², flexible
- Termination
- Cage clamp
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
