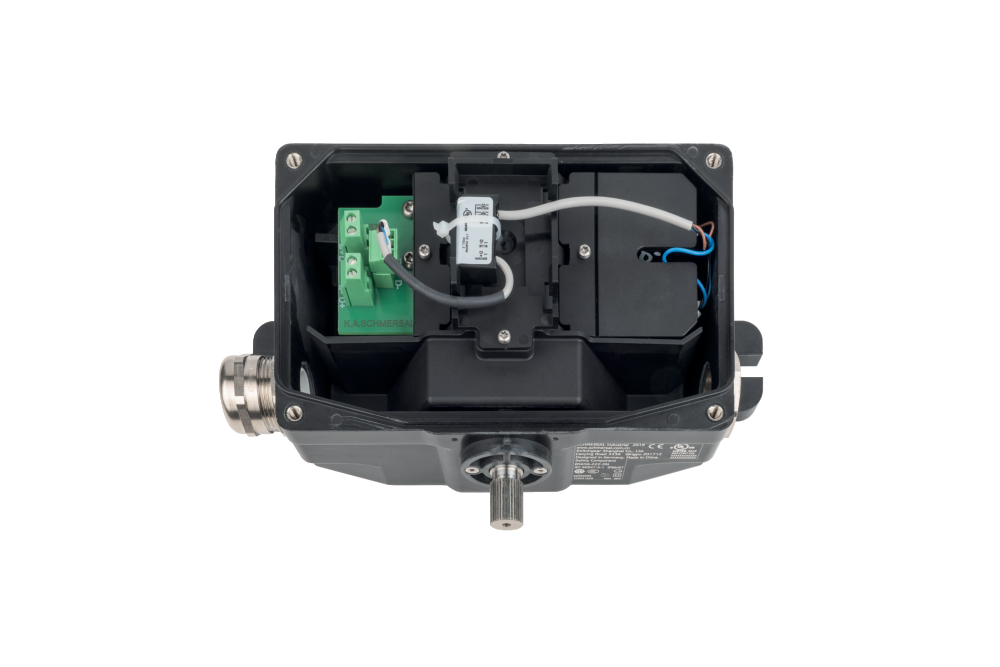

Schmersal 153031627
![Image of Schmersal 153031627](http://williamsautomation.com/cdn/shop/files/88e7f2394db1be7b6f63cc15714b464742af962d-large_b9a74075-5b89-41eb-bc3d-d6f093ff01df_1000x1000.png?v=1725430660)
![](http://williamsautomation.com/cdn/shop/files/free-shipping.png?v=1704404895&width=400)
![](http://williamsautomation.com/cdn/shop/files/warranty.png?v=1704404905&width=400)
![](http://williamsautomation.com/cdn/shop/files/bbb.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/overnight.png?v=1704404908&width=400)
![](http://williamsautomation.com/cdn/shop/files/usa.png?v=1704404908&width=400)
Description
Schmersal 153031627 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -40 ... +70 °C
- Degree of protection
- IP67 | IP66
- Protection class
- I
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Rated impulse withstand voltage U
- 4 kV
- Rated insulation voltage U
- 300 V
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Rated operating voltage
- 24 VDC
- 230 VAC
- Thermal test current
- 6 A
- Utilisation category AC-15
- 230 VAC
- 3 A
- Utilisation category DC-13
- 24 VDC
- 3 A
Electrical data - Communication protocols
- Feldbus Protokoll
- Dupline
Electrical data - Dupline
- Cable section, maximum
- 2.5 mm², flexible | 4 mm², rigid
- Cable section, minimum
- 0.2 mm², rigid | 0.25 mm², flexible
- Current consumption
- 0.1 mA
- Rated impulse withstand voltage U
- 0.8 kV
- Rated operating voltage
- 8.2 VDC
General data
- Enclosure material
- Grey cast iron, painted
- Gross weight
- 6,075 g
- Material of the housing cover
- Grey cast iron, painted
- Standards
- EN 620 | EN IEC 60947-5-1
General data - Features
- Number of auxiliary contacts
- 2
- Number of safety contacts
- 2
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positionierschritte für den Betätiger
- 10 °
Mechanical data - Connection technique
- Cable entry
- 2 x M25 x 1.5
- Cable section, maximum
- 2.5 mm², flexible
- Cable section, minimum
- 0.5 mm², flexible
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 2,000,000 Operations
