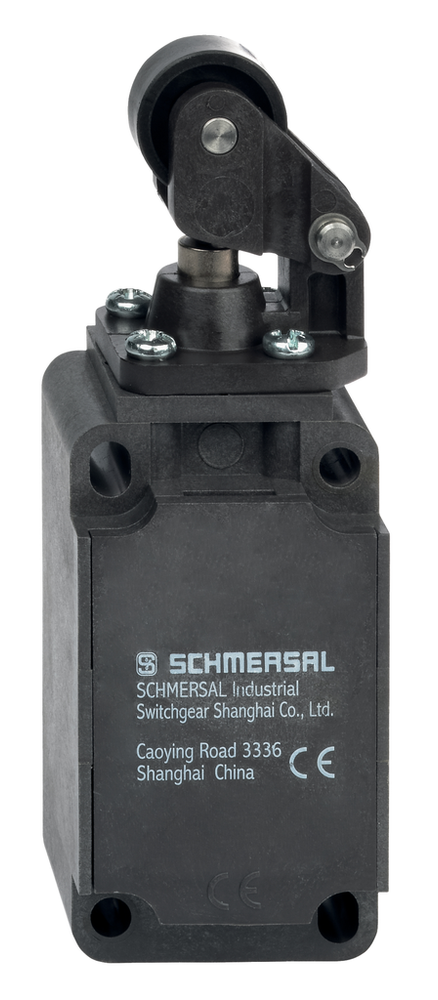

Schmersal 153007877
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Z1K 336-11Z-RVA
Schmersal 153007877 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Material of the contacts, electrical
- Silver
- Required rated short-circuit current
- 1,000 A
- Switching frequency
- 5,000 /h
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 4 A
- 24 VDC
General data
- Enclosure material
- Plastic, glass-fibre-reinforced
- Gross weight
- 264 g
- Housing construction form
- Norm construction design
Mechanical data
- Actuating element
- Offset roller lever
- Actuating force, minimum
- 17 N
- Actuating speed, maximum
- 0.5 m/s
- Mechanical life, minimum
- 30,000,000 Operations
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Roller material
- Stainless steel (V2A)
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 118.5 mm
- Length of sensor
- 38 mm
- Width of sensor
- 40.5 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
