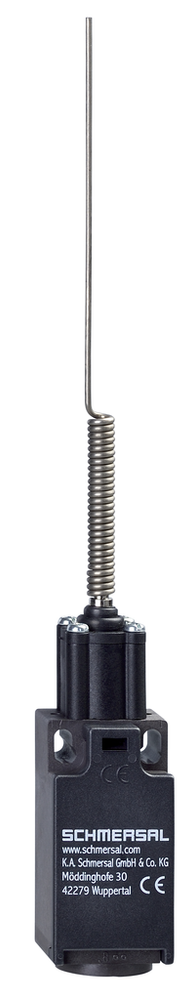

Schmersal 153004137
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ZAF 236-11Z
Schmersal 153004137 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
- Degree of protection
- IP65 | IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Bounce duration, maximum
- 3 ms
- Material of the contacts, electrical
- Silver
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 1,800 /h
- Switching principle
- Snap action
- Switchover time, maximum
- 5.5 ms
- Thermal test current
- 10 A
- Utilisation category AC-15
- 240 VAC
- 4 A
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Enclosure material
- Plastic, glass-fibre-reinforced
- Gross weight
- 80 g
- Housing construction form
- Norm construction design
- Material of the rod
- Metal film
- Standards
- EN IEC 60947-5-1
General data - Features
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
Mechanical data
- Actuating element
- Spring rod lever
- Actuating force
- 6 N
- Actuating speed, maximum
- 1 m/s
- Actuating speed, minimum
- 10 mm/min
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 232 mm
- Length of sensor
- 30 mm
- Width of sensor
- 30 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
