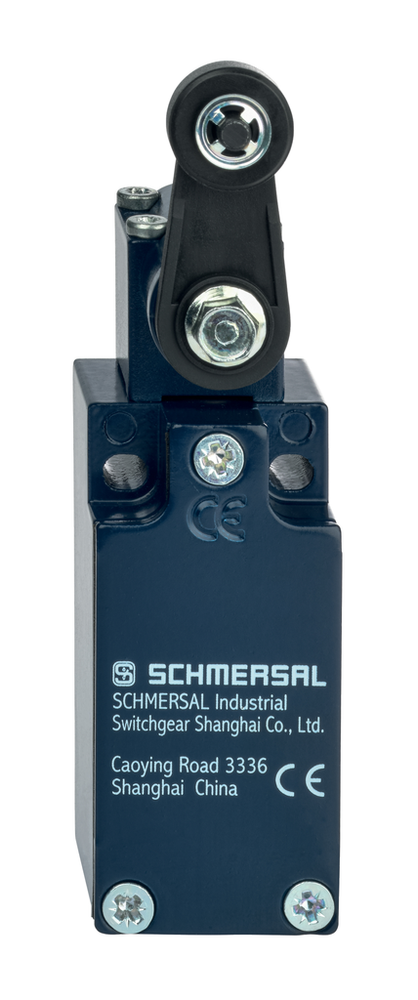

Schmersal 153002148
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
ZV1H 235-11Z-ST-1637
Schmersal 153002148 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
- Degree of protection
- IP65 | IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Bounce duration, maximum
- 3 ms
- Material of the contacts, electrical
- Gold-plated silver (AgNi 15 + Au 0,3µm)
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 5,000 /h
- Switching principle
- Snap action
- Switchover time, maximum
- 5.5 ms
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- 4 A
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Actuator type to EN 50047
- A
- Enclosure material
- Metal, zinc die-cast
- Gross weight
- 221 g
- Housing construction form
- Norm construction design
- Lever material
- Plastic
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
General data - Features
- Number of auxiliary contacts
- 1
- Number of safety contacts
- 1
- Safety functions
- Yes
Mechanical data
- Actuating element
- Roller lever
- Actuating speed, maximum
- 1 m/s
- Actuating speed, minimum
- 492 mm/min
- Actuating torque, minimum
- 0.2 Nm
- Mechanical life, minimum
- 20,000,000 Operations
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Positive break torque
- 0.2 Nm
- Roller material
- Plastic
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Connector M12, 4-pole
Mechanical data - Dimensions
- Height of sensor
- 111 mm
- Length of sensor
- 42.5 mm
- Width of sensor
- 30 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 20,000,000 Operations
