Description

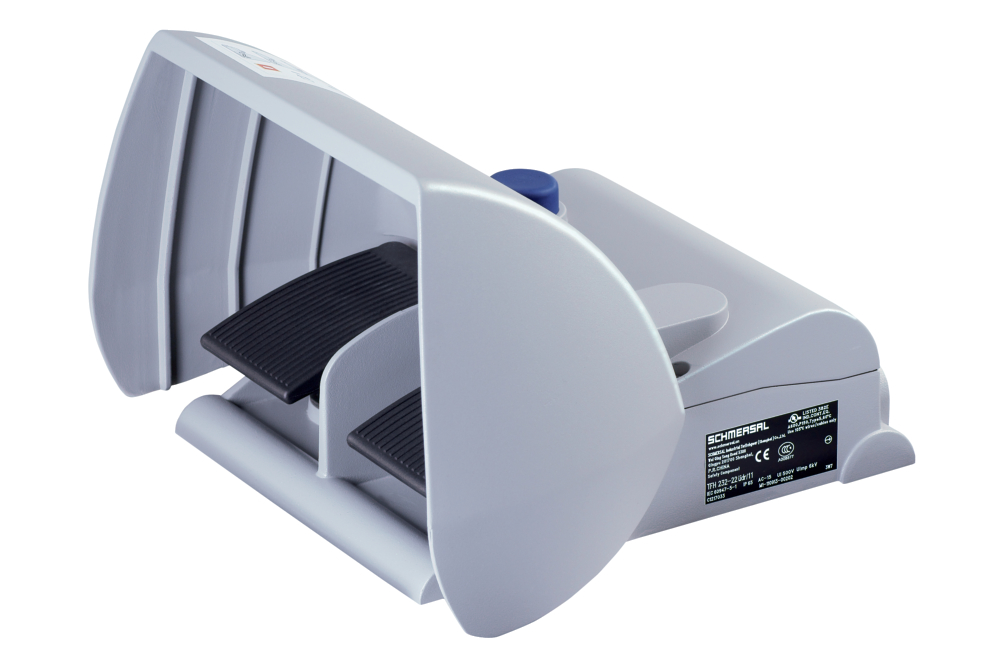

T2FH 232-22UEDR/22UEDR
Schmersal 151217044 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +60 °C
- Degree of protection
- IP65
- Note (Relative humidity)
- non-condensing | non-icing
- Relative humidity, maximum
- 95 %
- Relative humidity, minimum
- 30 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 3,600 /h
- Switching principle
- Slow action with overlapping contacts
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- 1 A
General data
- Enclosure coating material
- powder-coated
- Enclosure material
- Aluminium
- Gross weight
- 4,057 g
- Material of the housing cover
- Aluminium
- Material of the pedal
- Glass-fibre, reinforced thermoplastic
- Material of the protective shield
- Aluminium
- Standards
- BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1
General data - Features
- Latching
- Yes
- Number of pedals, NC
- 2
- Number of pedals, NO
- 2
- Probing possible
- Yes
- Protective shield
- Yes
- Suitable for EMERGENCY-OFF
- Yes
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 295 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 100,000 Operations
Specifications
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 295 mm
