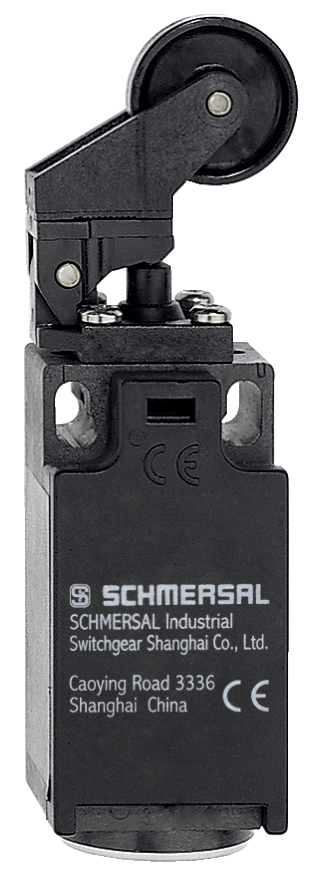

Schmersal 151208524
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TK4 236-20Z-M16-U180
Schmersal 151208524 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
- Degree of protection
- IP65 | IP67
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
Electrical data
- Material of the contacts, electrical
- Silver
- Required rated short-circuit current
- 1,000 A
- Switching frequency
- 5,000 /h
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 1 A
- 24 VDC
General data
- Enclosure material
- Plastic, glass-fibre-reinforced
- Gross weight
- 133 g
- Housing construction form
- Norm construction design
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
Mechanical data
- Actuating element
- Angle roller lever
- Actuating force, minimum
- 6 N
- Actuating speed, maximum
- 1 m/s
- Actuating speed, minimum
- 336 mm/min
- Mechanical life, minimum
- 20,000,000 Operations
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
- Positive break force, minimum
- 16 N
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Height of sensor
- 107 mm
- Length of sensor
- 30 mm
- Width of sensor
- 32 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
