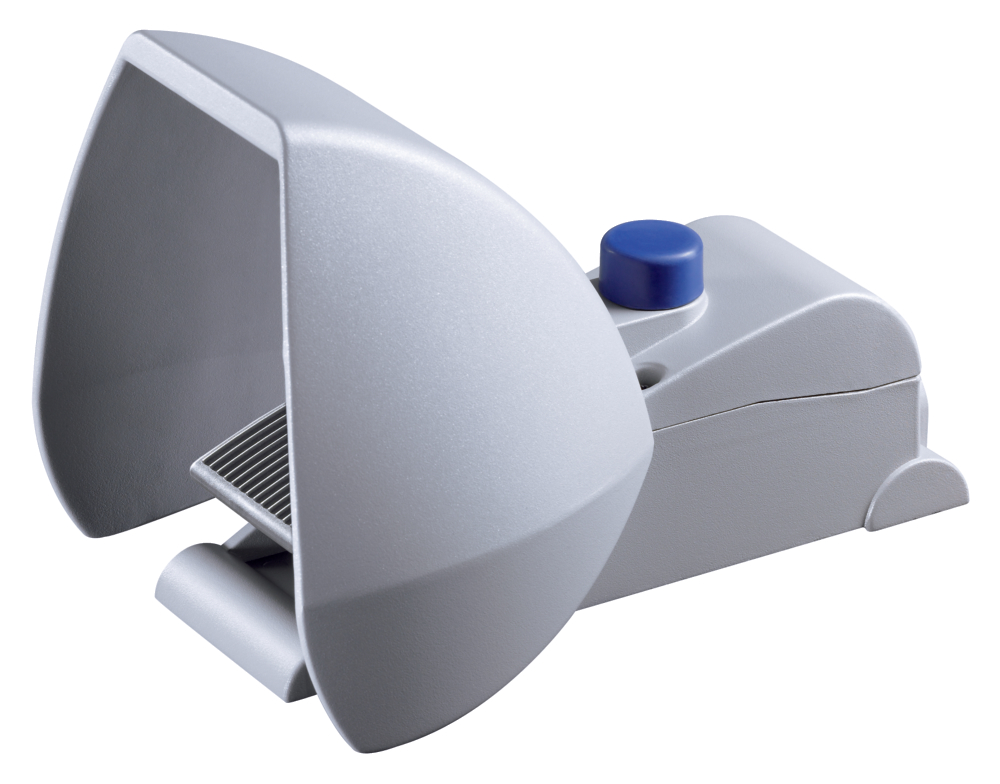

Schmersal 151181536
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
TFH232-11UEDR
Schmersal 151181536 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +60 °C
- Degree of protection
- IP65
- Note (Relative humidity)
- non-condensing | non-icing
- Relative humidity, maximum
- 95 %
- Relative humidity, minimum
- 30 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Restistance to shock
- 30 g / 11 ms
- Storage and transport temperature, maximum
- +85 °C
- Storage and transport temperature, minimum
- -25 °C
Ambient conditions - Insulation values
- Degree of pollution
- 3
- Overvoltage category
- III
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Electrical data
- Required rated short-circuit current
- 1,000 A
- Switching element
- NO contact, NC contact
- Switching frequency
- 3,600 /h
- Switching principle
- Slow action
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 1 A
- 24 VDC
General data
- Colour of the product
- White aluminum
- Enclosure coating material
- powder-coated
- Enclosure material
- Aluminium
- Gross weight
- 1,765 g
- Material of the housing cover
- Aluminium
- Material of the pedal
- Glass-fibre, reinforced thermoplastic
- Material of the protective shield
- Aluminium
- Standards
- BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1
General data - Features
- Latching
- Yes
- Probing possible
- Yes
- Suitable for EMERGENCY-OFF
- Yes
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 2.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 170 mm
Safety classification
- Mission time
- 20 Year(s)
- Standards
- EN ISO 13849-1
Safety classification - Safety outputs
- B
- 100,000 Operations
Specifications
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 170 mm
