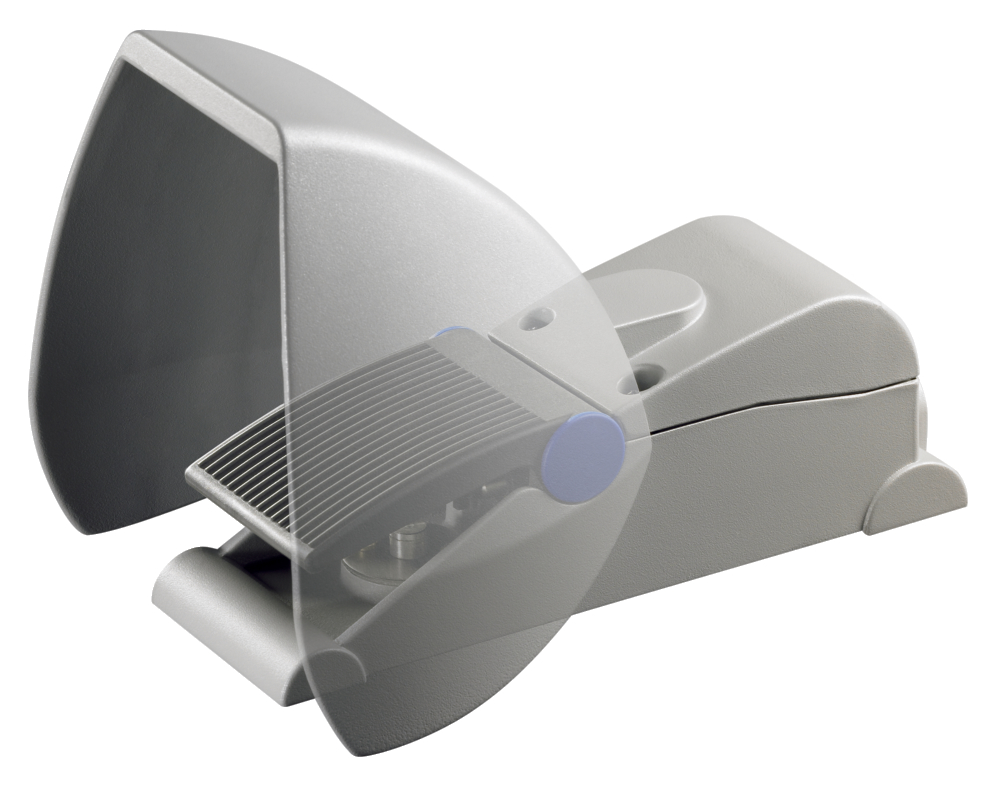

Schmersal 151181532
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TFH 232-22
Schmersal 151181532 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature
- -25 ... +70 °C
- Degree of protection
- IP65
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 6 kV
- Rated insulation voltage U
- 500 V
Approvals - Standards
- Certificates
- cULus | CCC
Electrical data
- Switching element
- NO contact, NC contact
- Switching principle
- Slow action
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- 230 VAC
- Utilisation category DC-13
- 1 A
- 24 VDC
General data
- Colour of the housing
- RAL 9006 (White aluminum)
- Enclosure coating material
- powder-coated
- Enclosure material
- Aluminium
- Gross weight
- 2,051 g
- Material of the housing cover
- Aluminium
- Material of the pedal
- Glass-fibre, reinforced thermoplastic
- Material of the protective shield
- Aluminium
- Standards
- BG-GS-ET-15 | DIN VDE 0660-200 | EN IEC 60947-5-1
General data - Features
- Number of normally closed (NC)
- 2
- Number of normally open (NO)
- 2
- Probing possible
- Yes
- Protective shield
- Yes
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Mechanical data - Connection technique
- Cable section, maximum
- 1 x 2.5 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
- Termination
- Screw terminals M20 x 1.5
Mechanical data - Dimensions
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 170 mm
Specifications
- Depth
- 274 mm
- Height
- 189 mm
- Width
- 170 mm
