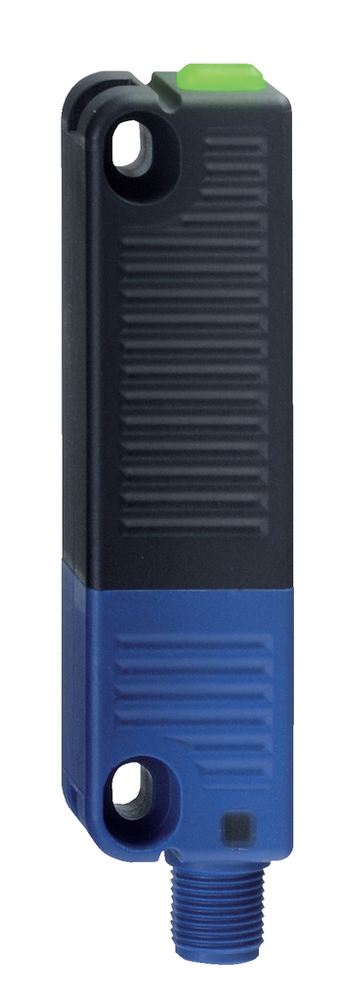

Schmersal 101213956

Accessory

• Recommendation (actuator)
  • RST 36-1 | RST 36-1-R
• Recommended safety switchgear
  • PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC

Ambient conditions

• Ambient temperature
  • -25 ... +70 °C
• Degree of protection
  • IP65 | IP67 | IP69
• Note (Relative humidity)
  • non-condensing | non-icing
• Permissible installation altitude above sea level, maximum
  • 2,000 m
• Protection class
  • III
• Relative humidity, maximum
  • 93 %
• Resistance to vibrations
  • 10 … 55 Hz, amplitude 1 mm
• Restistance to shock
  • 30 g / 11 ms
• Storage and transport temperature, maximum
  • +85 °C
• Storage and transport temperature, minimum
  • -25 °C

Ambient conditions - Insulation values

• Degree of pollution
  • 3
• Overvoltage category
  • III
• Rated impulse withstand voltage U
  • 0.8 kV
• Rated insulation voltage U
  • 32 VDC

Approvals - Standards

• Certificates
  • TÜV | cULus | ECOLAB | FCC | IC

Electrical data

• No-load supply current I
  • 35 mA
• Operating current
  • 600 mA
• Operating current, minimum
  • 0.5 mA
• Operating voltage
  • 24 VDC -15 % / +10 % (stabilised PELV power supply)
• Rated operating voltage
  • 24 VDC
• Required rated short-circuit current
  • 100 A
• Switching frequency, maximum
  • 1 Hz
• Time to readiness, maximum
  • 2,000 ms

Electrical data - Diagnostic outputs

• Current, Utilisation category DC-12
  • 0.05 A
• Current, Utilisation category DC-13
  • 0.05 A
• Designation, Diagnostic outputs
  • OUT
• Design of control elements
  • short-circuit proof, p-type
• Voltage drop U
  • 2 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

Electrical data - Electromagnetic compatibility (EMC)

• EMC rating
  • IEC 60947-3
• Interfering radiation
  • IEC 61000-6-4

Electrical data - Safety digital inputs

• Classification ZVEI CB24I, Sink
  • C1
• Classification ZVEI CB24I, Source
  • C1 | C2 | C3
• Current consumption of the safety inputs
  • 5 mA
• Designation, Safety inputs
  • X1 and X2
• Test pulse duration, maximum
  • 1 ms
• Test pulse interval, minimum
  • 100 ms

Electrical data - Safety digital outputs

• Classification ZVEI CB24I, Sink
  • C1 | C2
• Classification ZVEI CB24I, Source
  • C2
• Current, Utilisation category DC-12
  • 0.25 A
• Current, Utilisation category DC-13
  • 0.25 A
• Designation, Safety outputs
  • Y1 and Y2
• Design of control elements
  • short-circuit proof, p-type
• Leakage current I
  • 0.5 mA
• Output current, (fail-safe output), maximum
  • 0.25 A
• Rated operating current (safety outputs)
  • 250 mA
• Test pulse duration, maximum
  • 0.3 ms
• Test pulse interval, typical
  • 1000 ms
• Voltage drop U
  • 1 V
• Voltage, Utilisation category DC-12
  • 24 VDC
• Voltage, Utilisation category DC-13
  • 24 VDC

General data

• Active area
  • Glass-fibre, reinforced thermoplastic
• Coding
  • Universal coding
• Coding level according to EN ISO 14119
  • Low
• Duration of risk, maximum
  • 200 ms
• Enclosure material
  • Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Frequency band RFID
  • 125 kHz
• Gross weight
  • 100 g
• Housing construction form
  • Block
• Installation conditions (mechanical)
  • not flush
• Reaction time, maximum
  • 100 ms
• Reaction time, switching off safety outputs via actuator, maximum
  • 100 ms
• Reaction time, switching off safety outputs via safety inputs, maximum
  • 0.5 ms
• Sensor topology
  • Sensor for series wiring
• Standards
  • EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
• Transmitter output RFID, maximum
  • -6 dB/m
• Working principle
  • RFID

General data - Features

• Cascadable
  • Yes
• Cross-circuit detection
  • Yes
• Diagnostic output
  • Yes
• Integral system diagnostics, status
  • Yes
• Latching
  • Yes
• Number of fail-safe digital outputs
  • 2
• Number of LEDs
  • 3
• Number of semi-conductor outputs with signaling function
  • 1
• Safety functions
  • Yes
• Series-wiring
  • Yes
• Short circuit detection
  • Yes

Mechanical data

• Active area
  • lateral
• Actuating panels
  • lateral
• Hysteresis (Switching distance), maximum
  • 2 mm
• Latching force, approx.
  • 18 N
• Mechanical life, minimum
  • 1,000,000 Operations
• Mounting
  • A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
• Note (Mechanical life)
  • Actuating speed < 0.25 m/s | Operations for door weights ≤ 5 kg
• Note (Repeat accuracy R)
  • Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle).Minimum 100 mm clearance in case of approach from side.
• Repeat accuracy R
  • 0.5 mm
• Tightening torque of the fixing screws, maximum
  • 2.5 Nm
• Tightening torque of the fixing screws, minimum
  • 2.2 Nm
• Type of the fixing screws
  • 2x M4 (cylinder head screws with washers DIN 125A / form A)

Mechanical data - Connection technique

• Note (length of the sensor chain)
  • Cable length and cross-section change the voltage drop dependiing on the output current
• Note (series-wiring)
  • Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
• Termination
  • Connector M12, 8-pole

Mechanical data - Dimensions

• Height of sensor
  • 25 mm
• Length of sensor
  • 22 mm
• Width of sensor
  • 106.3 mm

Mechanical data - Switching distances according EN IEC 60947-5-3

• Assured switching distance "OFF" S
  • 20 mm
• Assured switching distance "ON" S
  • 10 mm
• Switch distance, typical
  • 12 mm

Note

• Note (General)
  • Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.5 ms. Short-circuit recognition by the evaluation is not necessary.

Pin assignment

• PIN 1
  • 1A1 Ue: (1)
• PIN 2
  • X1 Safety input 1
• PIN 3
  • A2 GND Blue
• PIN 4
  • Y1 Safety output 1 Black
• PIN 5
  • OUT Diagnostic output OUT Grey
• PIN 6
  • X2 Safety input 2 violet
• PIN 7
  • Y2 Safety output 2 red
• PIN 8
  • IN without function Pink

Safety classification

• Category
  • 4
• Mission time
  • 20 Year(s)
• Performance Level, up to
  • e
• PFD value
  • 2.10 x 10⁻⁵
• PFH value
  • 2.70 x 10⁻¹⁰ /h
• Safety Integrity Level (SIL), suitable for applications in
  • 3
• Standards
  • EN ISO 13849-1 | EN IEC 61508

Scope of delivery

• Scope of delivery
  • Actuator must be ordered separately.

Status indication

• Note (LED switching conditions display)
  • LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
