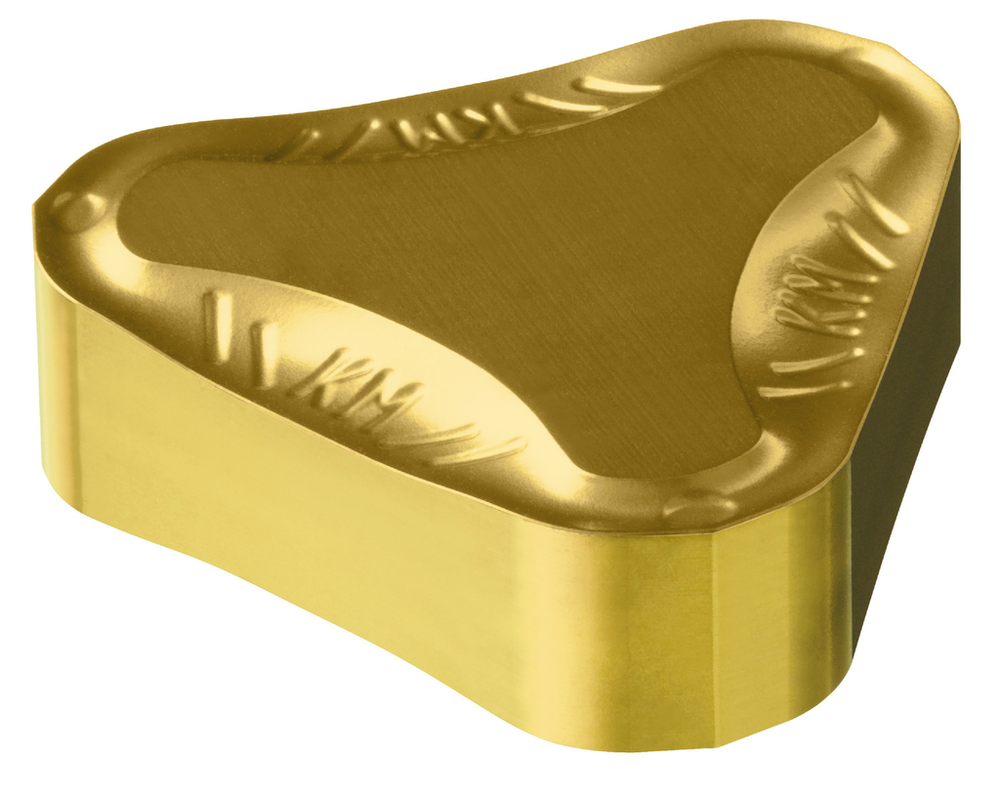

Sandvik TNEF 12 04 AN-KM K20W





Description
Sandvik TNEF 12 04 AN-KM K20W is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Chip Breaker Manufacturer'S Designation
- KM
- Corner Radius
- 0.07874 inch (2 mm)
- Country of Origin
- United States
- Cutting Edge Count
- 6
- Cutting Edge Effective Length
- 0.472441 inch (12 mm)
- Depth Of Cut Maximum
- 0.23622 inch (6 mm)
- Grade
- K20W
- Hand
- N
- Inscribed Circle Diameter
- 0.5 inch (12.7 mm)
- Insert Mounting Style
- Clamp
- Insert Rake Angle
- 7 deg
- Insert Shape
- Triangle
- Insert Size And Shape
- TN1204AN
- Insert Thickness
- 0.1875 inch (4.7625 mm)
- ISO Material Classification Level All
- Cast Iron
- Major Cutting Edge Angle
- 45 deg
- Operation Type
- Medium
- Sensor Embedded Property
- No
- Through Hole Function Property
- Yes
- Weight
- 0.027999 lbs (0.0127 kg)
- Wiper Edge Length
- 0.049213 inch (1.25 mm)
- Wiper Edge Radius
- 3.54331 inch (90 mm)
Williams Automation sells Sandvik parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
