Description

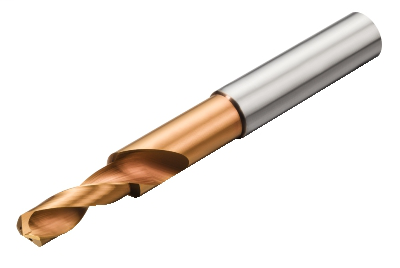

R841-0700-30-A1A 1220 CoroDrill Delta-C solid carbide step and chamfer drill
Sandvik R841-0700-30-A1A 1220 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Achievable Hole Tolerance
- H9
- Achievable Hole Tolerance Lower (Imperial)
- 0.275591 inch
- Achievable Hole Tolerance Lower (Metric)
- 7 mm
- Achievable Hole Tolerance Upper (Imperial)
- 0.277008 inch
- Achievable Hole Tolerance Upper (Metric)
- 7.036 mm
- Adaptive Interface Machine Direction
- Cylindrical shank without clamping features -metric: 10.00
- Basic Standard Group
- COROMANT
- Coating
- PVD;TiAlN
- Coating Composition
- TiAlN
- Connection Diameter (Imperial)
- 0.393701 inch
- Connection Diameter (Metric)
- 10 mm
- Connection Diameter Tolerance
- h6
- Coolant Entry Style Code
- 4: axial concentric entry on circle
- Coolant Pressure (Imperial)
- 290.076 lbf/in2
- Coolant Pressure (Metric)
- 20 bar
- Coropak
- 05.2
- CoroPak
- 05.2
- Country of Origin
- CN
- Cutting Diameter (Imperial)
- 0.275591 inch
- 0.374016 inch
- Cutting Diameter (Metric)
- 9.5 mm
- 7 mm
- D008_MachineSide Compatible Interface
- Cylindrical shank without clamping features -metric: 10.00
- D009_Coating_Composition
- TiAlN
- D009_Coating_Process
- PVD
- EAN Number
- 12070634
- Functional Length (Imperial)
- 3.45669 inch
- Functional Length (Metric)
- 87.8 mm
- Grade
- 1220
- 1220
- IC Code
- 9050
- Interface Description and Size
- Cylindrical shank without clamping features -metric: 10.00
- ISO Code
- R841-0700-30-A1A 1220
- Itemtext
- Solid Cutting Tool
- Itemtype
- 13
- Length Chip Flute (Imperial)
- 1.45669 inch
- Length Chip Flute (Metric)
- 37 mm
- Lifecyclestate
- 20
- Ordering Code
- R841-0700-30-A1A 1220
- Ordering Code Packed
- R841-0700-30-A1A1220
- Overall Length (Imperial)
- 3.50394 inch
- Overall Length (Metric)
- 89 mm
- Point Angle (Metric)
- 140 deg
- Point Length (Imperial)
- 0.047244 inch
- Point Length (Metric)
- 1.2 mm
- Product Category Description
- Standard
- Rotational Speed Maximum (Metric)
- 50000 r/min
- Step Diameter Length (Imperial)
- 0.830709 inch
- Step Diameter Length (Metric)
- 21.1 mm
- Step Included Angle (Metric)
- 90 deg
- Substrate Type
- WC
- Tpc Id
- DRLFSY_SLDSC
- Tpc Name
- Solid step and chamfer drill
- Usable Length (Imperial)
- 0.925197 inch
- Usable Length (Metric)
- 23.5 mm
- Weight Of Item (Imperial)
- 0.1826 lbs
- Weight Of Item (Metric)
- 0.083 kg
