Sandvik R590-110504H-NW H10
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

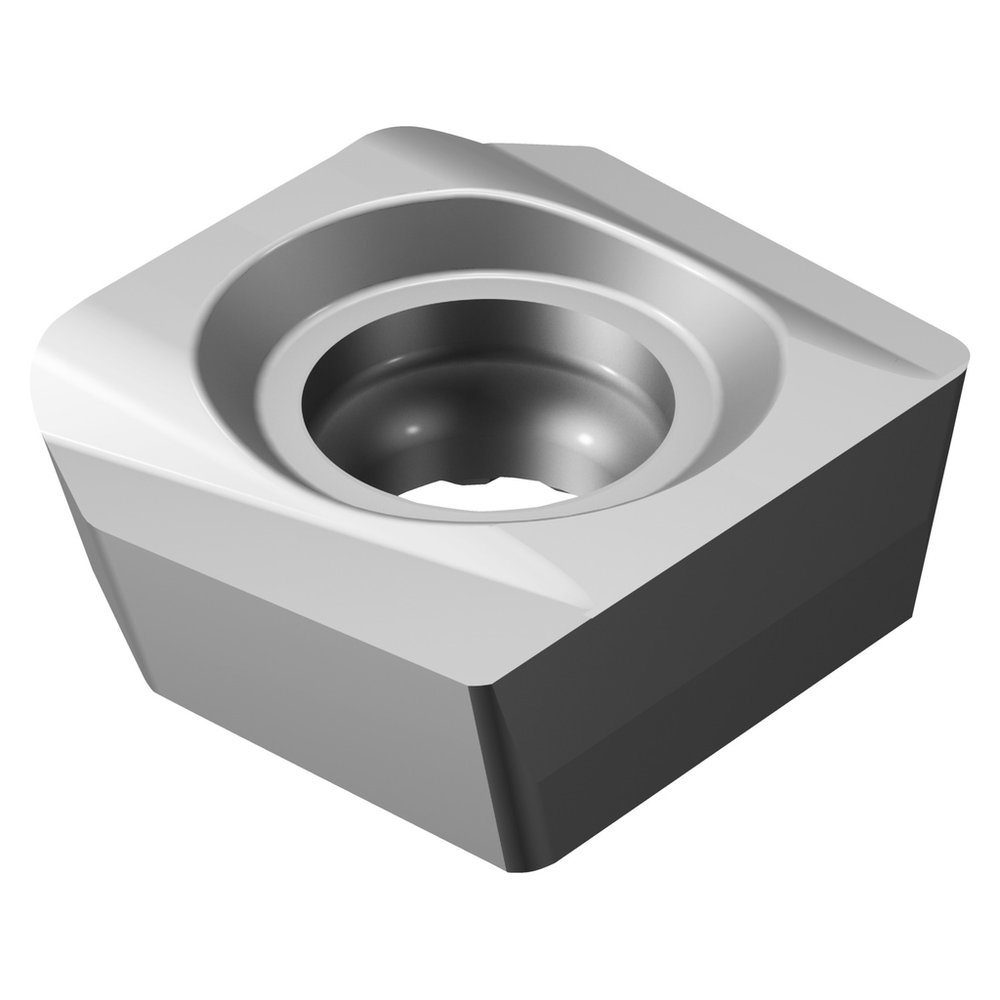

CoroMill® Century insert for milling, R590-110504H-NW H10
Sandvik R590-110504H-NW H10 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Chip Breaker Manufacturer'S Designation
- NW
- Corner Radius
- 0.015748 inch (0.4 mm)
- Country of Origin
- Sweden
- Cutting Edge Count
- 1
- Cutting Edge Effective Length
- 0.07874 inch (2 mm)
- Depth Of Cut Maximum
- 0.07874 inch (2 mm)
- Fixing Hole Diameter
- 0.181102 inch (4.6 mm)
- Grade
- H10
- Hand
- R
- Insert Mounting Style
- Screw/Clamp
- Insert Rake Angle
- 20 deg
- Insert Size And Shape
- CoroMill 590 -1105
- Insert Thickness
- 0.19685 inch (5 mm)
- Insert Width
- 0.452756 inch (11.5 mm)
- ISO Material Classification Level All
- Cast Iron;Non-ferrous Metal
- Major Cutting Edge Angle
- 90 deg
- Operation Type
- Light
- Sensor Embedded Property
- No
- Through Hole Function Property
- Yes
- Weight
- 0.014771 lbs (0.0067 kg)
- Wiper Edge Length
- 0.275591 inch (7 mm)
- Wiper Edge Radius
- 19.685 inch (500 mm)
