Sandvik R331.52-152T38FM
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

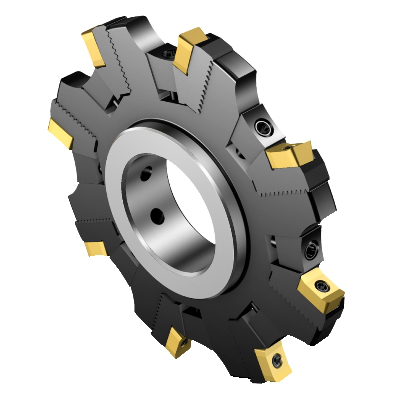

R331.52-152T38FM CoroMill 331 adjustable half side and face disc milling cutter
Sandvik R331.52-152T38FM is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adaptive Interface Machine Direction
- Arbor -ISO 240 -2 key drives -inch: 1 1/2
- Body Diameter (Imperial)
- 5.82677 inch
- Body Diameter (Metric)
- 148 mm
- Body Length (Imperial)
- 0.452756 inch
- Body Length (Metric)
- 11.5 mm
- Connection Diameter (Imperial)
- 1.5 inch
- Connection Diameter (Metric)
- 38.1 mm
- Coolant Entry Style Code
- 0: without coolant
- Coropak
- 94.2
- CoroPak
- 94.2
- Country of Origin
- SE
- Cutting Depth Maximum (Imperial)
- 1.92902 inch
- Cutting Depth Maximum (Metric)
- 48.9966 mm
- Cutting Diameter (Imperial)
- 6 inch
- Cutting Diameter (Metric)
- 152.4 mm
- Cutting Item Count
- 12
- D008_MachineSide Compatible Interface
- Arbor -ISO 240 -2 key drives -inch: 1 1/2
- EAN Number
- 10701891
- Functional Length (Imperial)
- 0.550984 inch
- Functional Length (Metric)
- 13.9954 mm
- Hub Diameter (Imperial)
- 2.04701 inch
- Hub Diameter (Metric)
- 51.9938 mm
- Hub Thickness (Imperial)
- 0.63 inch
- Hub Thickness (Metric)
- 16.002 mm
- IC Code
- 10000
- Insert Compatibility
- N331.1A-08
- Interface Description and Size
- Arbor -ISO 240 -2 key drives -inch: 1 1/2;COR: CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
- ISO Code
- R331.52-152T38FM
- Itemtext
- Tool Item
- Itemtype
- 11
- Lifecyclestate
- 20
- Ordering Code
- R331.52-152T38FM
- Ordering Code Packed
- R331.52-152T38FM
- Part2 Of Cutting Item Interface Identifiers
- CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
- Peripheral Effective Cutt Edge Count
- 12
- Product Category Description
- Standard
- Rotational Speed Maximum (Metric)
- 12400 r/min
- Torque (Imperial)
- 0.885075 ft lbs
- Torque (Metric)
- 1.2 Nm
- Tpc Id
- MILSF_IND
- Tpc Name
- Indexable side and face mill
- Weight Of Item (Imperial)
- 2.992 lbs
- Weight Of Item (Metric)
- 1.36 kg
- Working Engagement Ratio Maximum
- 0.3215
