Description

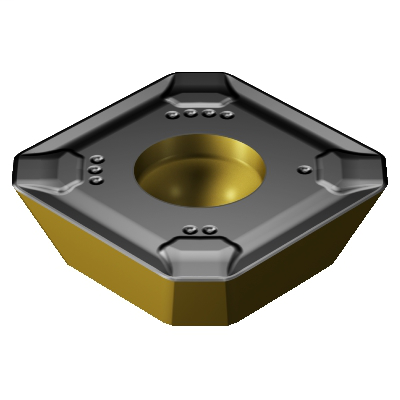

R245-12 T3 M-PH 4230 CoroMill 245 insert for milling
Sandvik R245-12 T3 M-PH 4230 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Chip Breaker Manufacturers Designation
- PH
- Coating
- CVD;Ti(C,N)+Al2O3+TiN
- Coating Composition
- Ti(C,N)+Al2O3+TiN
- Corner Radius (Imperial)
- 0.062992 inch
- Corner Radius (Metric)
- 1.6 mm
- Coropak
- 07.1
- CoroPak
- 07.1
- Country of Origin
- SE
- Cutting Edge Angle Major (Metric)
- 45 deg
- Cutting Edge Effective Length (Imperial)
- 0.385827 inch
- Cutting Edge Effective Length (Metric)
- 9.8 mm
- D009_Coating_Composition
- Ti(C,N)+Al2O3+TiN
- D009_Coating_Process
- CVD
- EAN Number
- 12205826
- Grade
- 4230
- 4230
- IC Code
- 18000
- Inscribed Circle Diameter (Imperial)
- 0.527559 inch
- Inscribed Circle Diameter (Metric)
- 13.4 mm
- Insert Size
- 12T3
- Insert Size And Shape
- CoroMill 245 -12T3
- Insert Style
- R245
- Insert Thickness (Imperial)
- 0.15626 inch
- Insert Thickness (Metric)
- 3.96875 mm
- Interface Description and Size
- COR: CoroMill 245 -12T3
- ISO Code
- R245-12 T3 M-PH 4230
- Itemtext
- Insert
- Itemtype
- 10
- Lifecyclestate
- 20
- Operation Type
- Heavy
- Ordering Code
- R245-12 T3 M-PH 4230
- Ordering Code Packed
- R245-12T3M-PH4230
- Pack Size
- 10
- Product Category Description
- Standard
- Substrate Type
- WC
- Tpc Id
- INSMILG
- Tpc Name
- General
- Weight Of Item (Imperial)
- 0.0158 lbs
- Weight Of Item (Metric)
- 0.0072 kg
- Wiper Edge Length (Imperial)
- 0.060236 inch
- Wiper Edge Length (Metric)
- 1.53 mm
