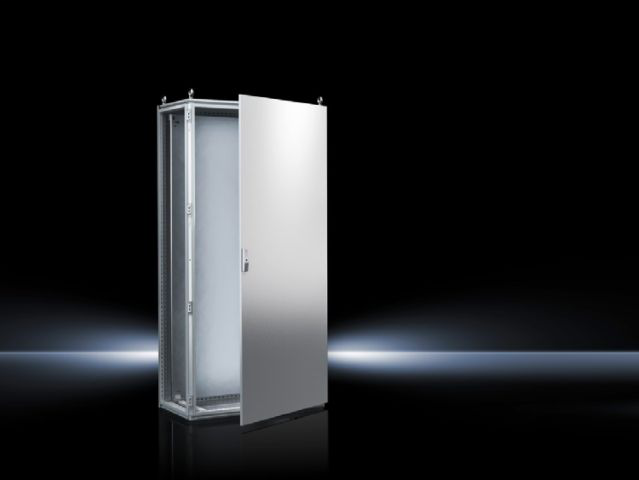

Rittal TS 8886.500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Rittal TS 8886.500 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Depth
- 600 mm ( 24" )
- Height
- 1,800 mm ( 71" )
- Width
- 800 mm ( 31" )
Material
- Base plates
- Carbon steel, 1.5 mm
- Door
- Carbon steel, 2.0 mm
- Enclosure frame
- Carbon steel, 1.5 mm
- Mounting plate
- Carbon steel, 3.0 mm
- Rear wall
- carbon steel, 1.5 mm
- Roof
- Carbon steel, 1.5 mm
Mounting plate
- Height
- 1,696 mm ( 67" )
- Width
- 699 mm ( 28" )
Specifications
- 2 support strips fitted in the enclosure depth
- yes
- Base material
- Carbon steel
- Color
- RAL 7035
- eCl@ss 6.0/6.1
- 27180101
- eCl@ss 8.0/8.1
- 27180101
- IK code
- IK09
- Number of doors
- 1
- Protection category IP to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 12
Surface finish
- Door, roof and rear panel
- Dipcoat-primed, powder-coated on the outside, textured paint
- Enclosure frame
- Dipcoat-primed
- Mounting plate and base plates
- Zinc-plated
