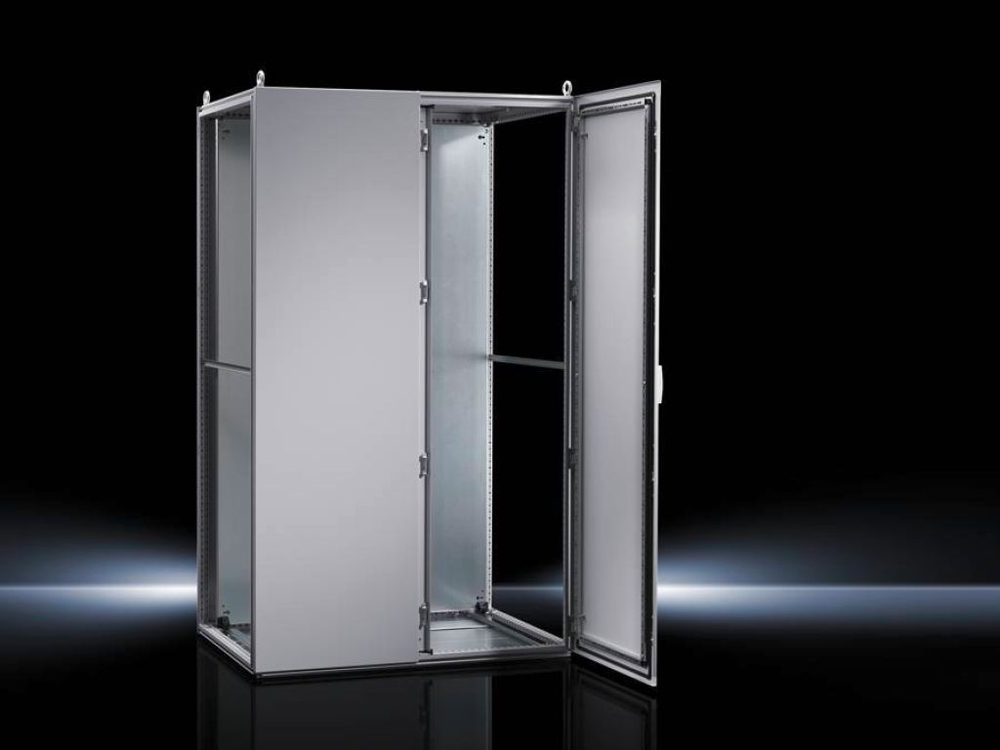

Rittal TS 8215.500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from sheet steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.
Rittal TS 8215.500 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Dimensions
- Depth
- 500 mm (20 ˝)
- Height
- 1200 mm (47 ˝)
- Width
- 1200 mm (47 ˝)
Material
- Base plates
- Carbon steel, 1.5 mm
- Door
- Carbon steel, 2.0 mm
- Enclosure frame
- Carbon steel, 1.5 mm
- Mounting plate
- Carbon steel, 3.0 mm
- Rear panel
- Carbon steel, 1.5 mm
- Roof
- Carbon steel, 1.5 mm
Mounting Plate
- Height
- 1096 mm (43 ˝)
- Width
- 1099 mm (43 ˝)
Product Description
- Base material
- Carbon steel
- Color
- RAL 7035
- Customs tariff number
- 94032080
- EAN
- 4028177522848
- eCl@ss 5.1/5.1.4
- 27180101
- eCl@ss 6.0/6.1
- 27180101
- eCl@ss 7.0/7.1
- 27180101
- eCl@ss 8.0/8.1
- 27180101
- ETIM 5.0
- EC000261
- ETIM 6.0
- EC000261
- IK code
- IK09
- Number of doors
- 2
- Packaging unit
- 1 pc(s).
- Protection category IP to IEC 60 529:
- IP 55
- Protection category NEMA
- NEMA 12
- Weight/packaging unit
- 140 kg (308.6 lb.)
Supply Includes
- Lock
- 3 mm double-bit
Surface Finish
- Door, roof and rear panel
- Dipcoat-primed, powder-coated on the outside, textured paint
- Enclosure frame
- Dipcoat-primed
- Mounting plate and base plates
- Zinc-plated
