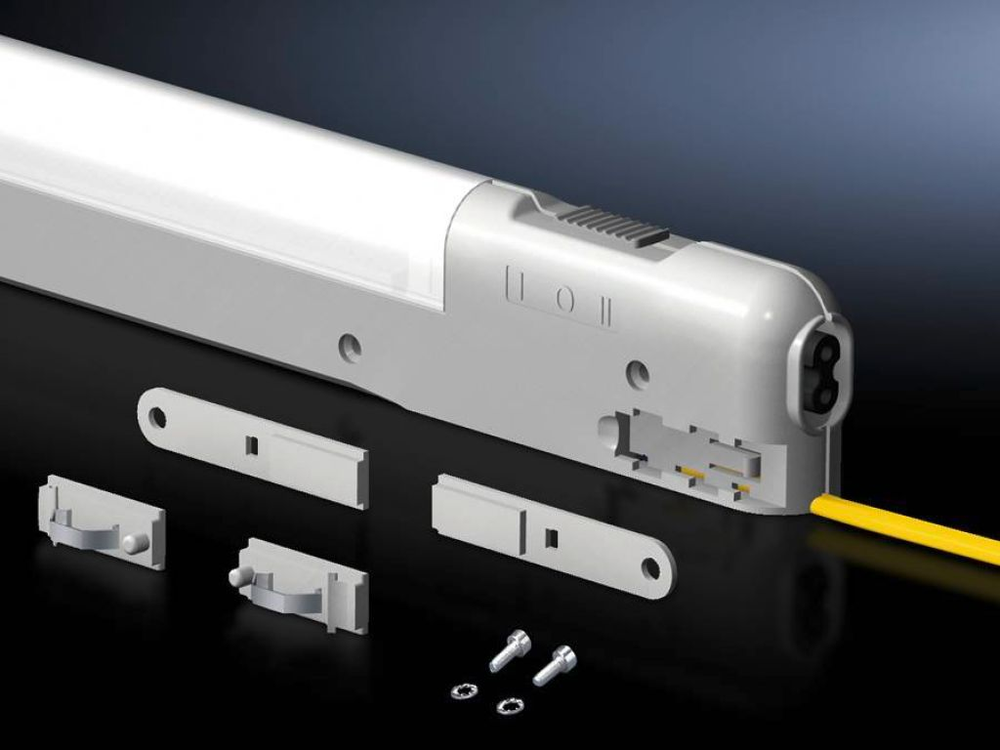

Rittal SZ 4140.110
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Supply voltage: 100 - 240 V AC 50/60 Hz, 24 V DC
Rittal SZ 4140.110 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Benefits
- Faster
- Universal quick-release fastening at TS punchings using clips, screws or powerful magnets (optional). Easy to insert at the sides or rear, fit light and you’re done!
- Slimmer
- Height and depth reduced by around 50%, takes up 75% less volume than conventional lights
Dimensions
- Depth
- 24 mm (0.94 ˝)
- Height
- 59 mm (2.3 ˝)
- Width
- 455 mm (18 ˝)
Equipment (Electrical)
- Ballast
- EB
- Cable color
- Yellow
- Length of connection cable
- 3 m (118 ˝)
- Light (bulb)
- T5 fluorescent lamp
- Switch (type)
- Integral, on/off/door-operated switch mode
Installation Options
- AE
- with rail for interior installation
- AE, CM, TP
- with magnetic fastener
- SE profiles to the front and rear of roof frames
- direct
- SE profiles to the side of roof frames
- direct
- TS horizontal profile from roof frames
- direct
Mounting dimensions
- Mounting distance – clip/magnet
- 400 mm (16 ˝)
- Mounting distance – screw attachment
- 475 mm (19 ˝)
Operating Temperature
- Operation (environment)
- -15°C...+45°C
- Storage
- -20°C...+70°C
Product Description
- Cable deflector across rear possible
- yes
- Color
- Similar to RAL 7035
- Customs tariff number
- 94054095
- EAN
- 4028177550292
- eCl@ss 5.1/5.1.4
- 27189241
- eCl@ss 6.0/6.1
- 27189241
- eCl@ss 7.0/7.1
- 27189241
- eCl@ss 8.0/8.1
- 27189241
- ETIM 5.0
- EC000321
- ETIM 6.0
- EC000321
- Light cover
- yes
- Note
- Door-operated switch connection can be made using 2-pole connector
- Note on Model No.:
- Cable deflector across rear possible
- Packaging unit
- 1 pc(s).
- Power consumption
- 8 W
- Protection category
- II (total insulation)
- Protection category IP to IEC 60 529:
- IP 20
- Rated current
- with DC (max.): 0.35 A
- Rated impulse withstand voltage, phase to earth
- Depending on the power supply
- Rated impulse withstand voltage, phase to phase
- Depending on the power supply
- Rated insulation voltage
- Depending on the power supply
- Weight/packaging unit
- 0.56 kg (1.2 lb.)
Rated Operating Voltage
- Voltage tolerance
- ± 10 %
