Rittal SV 9344.110
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

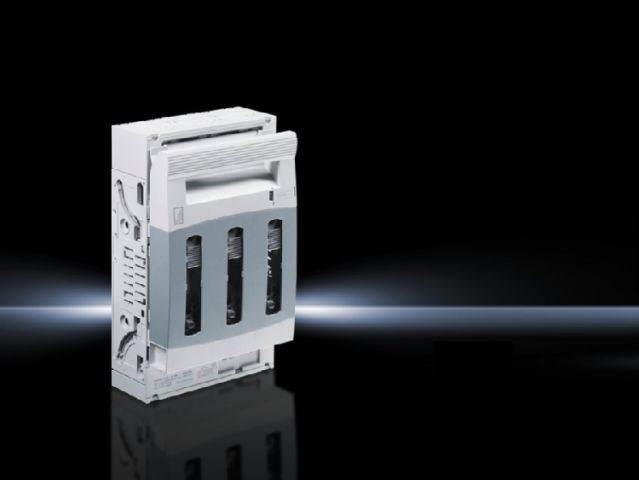

SV NH fuse-switch disconnector, size 1, 250 A, 690 V, 3-pole, screw M10, for mounting plate assemblyNH fuse-switch disconnector, size 00 to 3
Rittal SV 9344.110 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Clamping area for laminated copper bars:
- Height
- 10 mm ( 0.39" )
- Width
- 32 mm ( 1.3" )
Color
- Chassis
- RAL 7035
- Cover
- RAL 7035/7001
Dimensions
- Height
- 298 mm ( 12" )
- Width
- 184 mm ( 7.2" )
Specifications
- Cable outlet
- Top/bottom
- Connection for round conductor cross-sections
- 10 mm² - 150 mm²
- Copper weight (kg per piece)
- 0.3
- eCl@ss 6.0/6.1
- 27371401
- eCl@ss 8.0/8.1
- 27371401
- For mounting panel assembly.
- yes
- Note
- The technical data may vary in the case of UR applications. UR applications only in conjunction with "Special Purpose Fuses".
- Number of poles
- 3-pole
- Rated operating current max.
- 250 A
- Rated operating voltage
- 690 V, 3~
- Type of connection (electrical)
- Screw M10
Version
- Size
- 1
