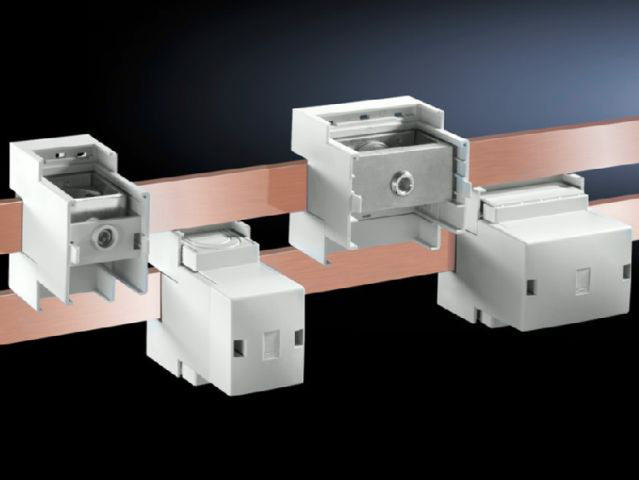

Rittal SV 9342.311
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
For connecting round conductors and laminated copper bars.Connection block
Rittal SV 9342.311 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Clamping area for laminated copper bars:
- Height with busbar thickness 10 mm
- 22 mm ( 0.87" )
- Height with busbar thickness 5 mm
- 26 mm ( 1" )
- Width with busbar thickness 10 mm
- 33 mm ( 1.3" )
- Width with busbar thickness 5 mm
- 33 mm
Connection for round conductor cross-sections
- Fine wire with wire end ferrule
- 95 mm² - 185 mm²
- Multi-wire
- 95 mm² - 300 mm²
Dimensions
- Height
- 88 mm ( 3.5" )
- Width
- 50 mm ( 2" )
Material
- Cover
- ABS
- Punched section
- Polyamide
Specifications
- Cable outlet
- Top/bottom
- Color
- RAL 7035
- Copper weight (kg per piece)
- 0.096
- eCl@ss 6.0/6.1
- 27400613
- eCl@ss 8.0/8.1
- 27400613
- Note
- When using the terminal on 2-pole busbar systems (SV 9340.040), the terminal must be rotated through 180° for connection to the PE busbar.
- Rated current max.
- 800 A
- Rated operating voltage
- 690 V, 1~
- Supply includes
- 3 terminals including cover
