Rittal SV 9342.310
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

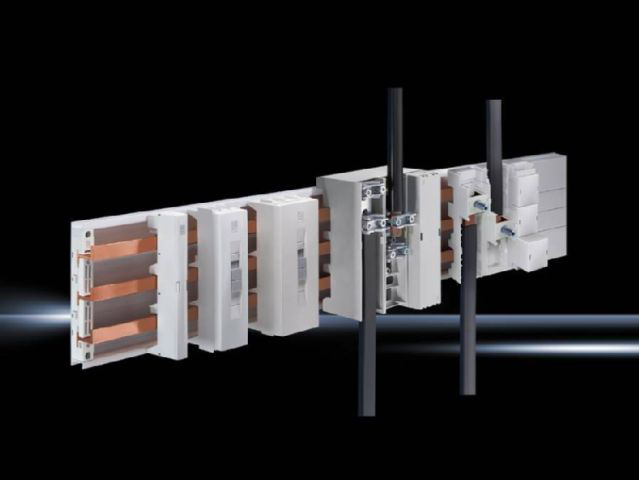

For connecting round conductors or laminated copper bars. For bar systems with 60 mm center-to-center spacing.Connection Adapters
Rittal SV 9342.310 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Clamping area for laminated copper bars:
- Height with busbar thickness 10 mm
- 21 mm ( 0.83" )
- Height with busbar thickness 5 mm
- 26 mm ( 1" )
- Width with busbar thickness 10 mm
- 33 mm ( 1.3" )
- Width with busbar thickness 5 mm
- 33 mm
Connection for round conductor cross-sections
- Fine wire with wire end ferrule
- 95 mm² - 185 mm²
- Multi-wire
- 95 mm² - 300 mm²
Dimensions
- Height
- 210 mm ( 8.3" )
- Width
- 150 mm ( 5.9" )
Material
- Chassis 3439.010
- Fiberglass-reinforced, thermoplastic polyester (PBT)
- Cover
- ABS
- Punched section
- Polyamide
Specifications
- Cable outlet
- Top/bottom
- Color
- RAL 7035
- Copper weight (kg per piece)
- 0.207
- eCl@ss 6.0/6.1
- 27370304
- eCl@ss 8.0/8.1
- 27370304
- For bar systems with center-to-center spacing
- 60
- Number of poles
- 3-pole
- Rated current max.
- 800 A
- Rated operating voltage
- 690 V, 3~
Suitable for busbars
- with cross-section height
- 10 mm ( 0.39" )
- 5 mm ( 0.2" )
