Rittal SK 3243.100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

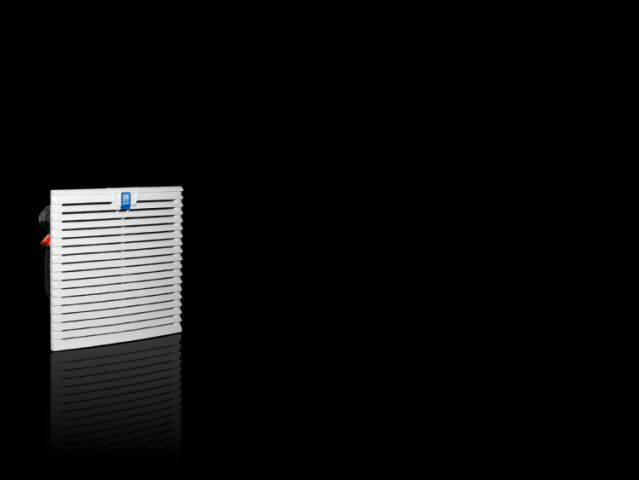

Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, protection category IP 54 as standard.TopTherm Filter Fan Units
Rittal SK 3243.100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Air throughput (unimpeded air flow)
- At 50 Hz
- 550 m³/h ( 323.7cfm )
- At 60 Hz
- 600 m³/h ( 353.1cfm )
Air throughput with outlet filter, including standard filter mat (quantity x order number, throughput 50/60 Hz)
- 1 x 3243200
- 465/510 m³/h
- 2 x 3243200
- 508/548 m³/h
Dimensions
- Height
- 323 mm ( 13" )
- Width
- 323 mm ( 13" )
Noise pressure level
- At 50 Hz
- 59 dB(A)
- At 60 Hz
- 61 dB(A)
Rated current max.
- At 50 Hz
- 0.37 A
- At 60 Hz
- 0.39 A
Rated power Pel
- At 50 Hz
- 70 W
- At 60 Hz
- 87 W
Required mounting cut-out
- Height
- 292 mm ( 11" )
- Width
- 292 mm ( 11" )
Specifications
- Build depth
- 25 mm ( 0.98" )
- Color
- RAL 7035
- eCl@ss 6.0/6.1
- 27180716
- eCl@ss 8.0/8.1
- 27180716
- Fan
- Diagonal, 1~ capacitor motor
- Installation depth
- 118.5 mm ( 4.7" )
- Life span at 50 Hz
- 65,000 h
- Life span at 60 Hz
- 61,000 h
- Miniature circuit-breaker/fuse
- 4 A
- Note
- Electrical connection of the filter fans 3237.XXX is by means of 2 individual wires at the device, for all other filter fans, by means of a spring-type terminal.
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Supply includes
- Complete unit ready for connection, including filter mat
Temperature range
- Operation (environment)
- -30 °C...+55 °C
- Storage
- -30 °C...+70 °C
