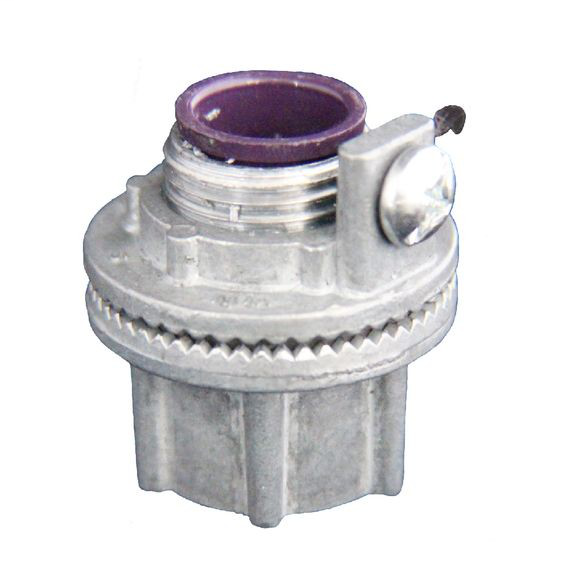

Remke WH-7-G
Description
Remke WH-7-G is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- A Dimension (in)
- 3.7
- B Dimension (in)
- 2.47
- Body Material
- Die-Cast Zinc
- Box Quantity
- 1
- Category
- Cord Grips & Cable Connectors|Watertight Conduit Hubs|Grounded Zinc Die Cast,Cord Grips & Cable Connectors|All Cable Connectors & Cord Grips
- Clearance Hole (in)
- 3
- Conduit Size
- 2 1/2
- Connector Material
- Die-Cast Zinc
- Country of Origin
- India
- CSA Specification
- 244523
- Flammability Rating
- UL 94V-2
- Hazardous Class/Division
- Class 1, Div 2"
- Inside Body Diameter / Body Bore
- 2.38
- Maximum Knock Out Size (in)
- 3
- Maximum Operating Temperature (C)
- 121
- Maximum Operating Temperature (F)
- 250
- Minimum Operating Temperature (C)
- -40
- Minimum Operating Temperature (F)
- -40
- NEMA Rating
- 4
- O-Ring Material
- Buna N
- Plating Color
- Natural
- Plating Type
- Zinc
- Standard Package Quantity
- 1
- Tab Info
- Temps,Hazardous,Cord/Cable Dia.,Knockout,Thread Specs,Flammability,IP Ratings,Ratings/Mtls,Approvals,Certifications
- Thread Size
- 2 1/2
- Thread Type
- NPT
- UL Specification
- E157356
- UNSPC
- 39131707
- UPC
- 785411199306
