Remke 202A0200T
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

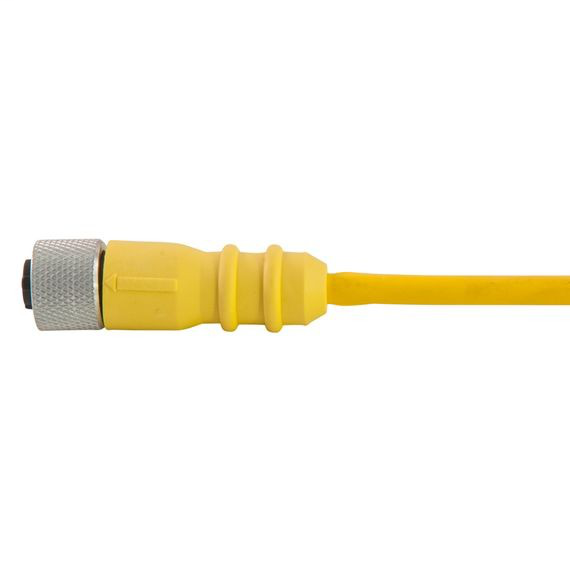

Dual Key Micro-Link Plug Assembly, Pvc, Female, 2 Pole, 20', 22 Awg
Remke 202A0200T is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Body Material
- PVC
- Cable Code
- Auto
- Cable Jacket Color
- Yellow
- Cable Jacket Material
- PVC
- Cable Jacket Outer Diameter (in)
- 0.17
- Cable Length (ft)
- 20
- Cable Strand
- 26 X #36
- Category
- Molded Connectors|Micro-Link Molded Connectors & Cordsets|Dual Key|PVC|Female Plugs|Straight Non-Braided,Molded Connectors|All Molded Connectors,Cord Grips & Cable Connectors|Lighting Connectors
- Conductor Color 1
- Brown
- Conductor Color 2
- Blue
- Connector Style
- MicroLink Dual Key
- Contact Carrier Material
- Nylon
- Contact Material
- Brass, Gold Plated Over Nickel"
- Contact Resistance (Micro Ohms)
- 5
- Cordset Configuration
- Straight
- Country of Origin
- United States
- Coupling Nut Material
- Aluminum
- Coupling Nut Plating
- Clear Anodized
- cRU Specification
- E165657
- CSA Specification
- E165657
- Current Rating (amps)
- 4
- Insert Material
- Nylon
- IP Rating
- IP67
- Length (in)
- 1.85
- Maximum Operating Temperature (C)
- 105
- Maximum Operating Temperature (F)
- 221
- Minimum Operating Temperature (C)
- -20
- Minimum Operating Temperature (F)
- -4
- NEMA Rating
- 6P
- O-Ring Material
- Nitrile Rubber
- Poles
- 2
- Standard Package Quantity
- 1
- Tab Info
- Cable Cross,ROHS,Coupling Nut Mtl,CRT,Cable Jacket Mtl,TL APP,IP Ratings,Knockout Dim
- Thread 1
- 1/2-20 UNF
- UNSPC
- 32151902
- UPC
- 785411801803
- Voltage Rating (AC)
- 250
- Voltage Rating (DC)
- 300
- Width (in)
- 0.57
- Wire Gauge
- 22 AWG
- Wiring Color Code
- Auto CC
