Remke 103PF0010MHT
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

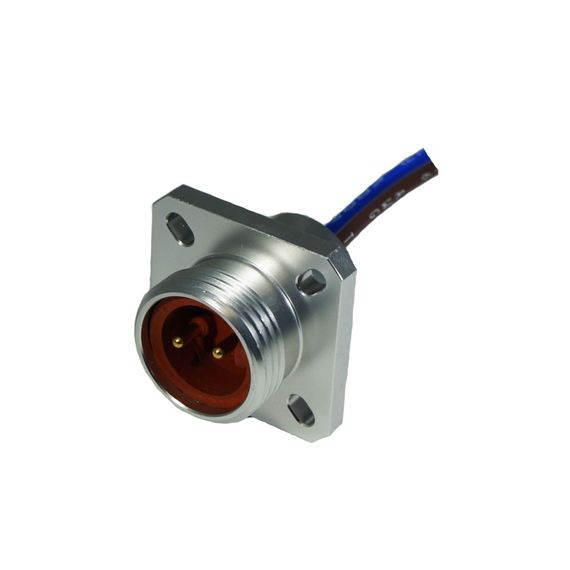

Mini-Link Receptacle, Hi-Temp Silicone, Male Flange Mount, 3 Pole, 1'
Remke 103PF0010MHT is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Cable Code
- Auto
- Cable Strand
- 26 X #30
- Category
- Molded Connectors|Mini-Link Molded Connectors & Cordsets|Hi-Temp Silicone Receptacles with 12" Pigtail Leads|Male Flange Mount,Molded Connectors|All Molded Connectors,Cord Grips & Cable Connectors|Lighting Connectors
- Conductor Color 1
- Green
- Conductor Color 2
- Black
- Conductor Color 3
- White
- Connector Style
- MiniLink
- Contact Carrier Material
- Silicone
- Contact Material
- Brass, Gold Plated Over Nickel"
- Contact Resistance (Micro Ohms)
- 5
- Contact Sleeve
- Stainless Steel
- Country of Origin
- United States
- Current Rating (amps)
- 13
- Insert Material
- Silicone
- IP Rating
- IP67
- Length (in)
- 1.07
- Maximum Operating Temperature (C)
- 180
- Maximum Operating Temperature (F)
- 356
- Minimum Operating Temperature (C)
- -50
- Minimum Operating Temperature (F)
- -58
- NEMA Rating
- 6P
- O-Ring Material
- Viton
- Poles
- 3
- Receptacle Configuration
- Male Flange Mount
- Receptacle Lead Jacket Material
- Silicone
- Receptacle Lead Length
- 1
- Shell Material
- Machined Aluminum
- Shell Plating
- Black Anodized
- Standard Package Quantity
- 1
- Tab Info
- Coupling Nut Mtl,TL APP,Knockout Dim,Cable Cross,IP Ratings,CRT,Cable Jacket Mtl,ROHS
- Thread 1
- 7/8-16 UNS
- UNSPC
- 32151905
- UPC
- 785411042230
- Voltage Rating (AC)
- 600
- Voltage Rating (DC)
- 600
- Wire Gauge
- 16 AWG
- Wiring Color Code
- Auto CC
