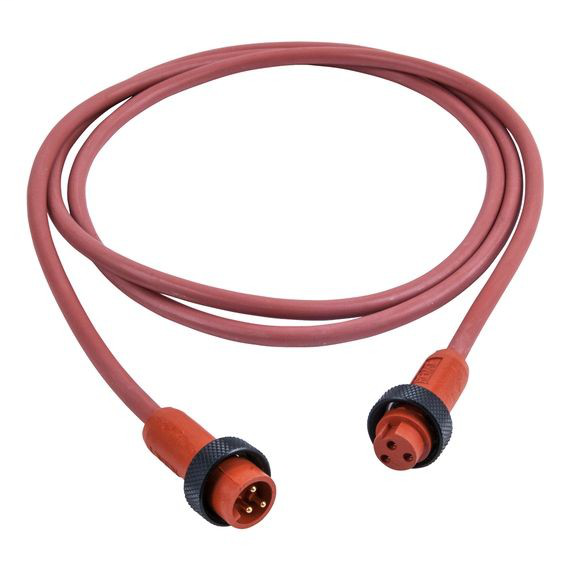

Remke 103G0060AHT
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Remke 103G0060AHT is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Body Material
- Silicone Rubber
- Cable Code
- Auto
- Cable Jacket Color
- Red
- Cable Jacket Material
- Silicone
- Cable Jacket Outer Diameter (in)
- 0.32
- Cable Length (ft)
- 6
- Cable Strand
- 65 X #34
- Category
- Molded Connectors|Mini-Link Molded Connectors & Cordsets|Hi-Temp Silicone Cable Assemblies|Male-Female Cordset,Cord Grips & Cable Connectors|Lighting Connectors,Molded Connectors|All Molded Connectors
- Conductor Color 1
- Green
- Conductor Color 2
- Black
- Conductor Color 3
- White
- Connector Style
- MiniLink
- Contact Carrier Material
- Silicone
- Contact Material
- Brass, Gold Plated Over Nickel"
- Contact Resistance (Micro Ohms)
- 5
- Contact Sleeve
- Stainless Steel
- Cordset Configuration
- Straight/Straight
- Country of Origin
- United States
- Coupling Nut Material
- Aluminum
- Coupling Nut Plating
- Black Anodized
- Current Rating (amps)
- 13
- Insert Material
- Silicone
- IP Rating
- IP67
- Length (in)
- 1.92
- Length (in) 2
- 1.92
- Maximum Operating Temperature (C)
- 90
- Maximum Operating Temperature (F)
- 194
- Minimum Operating Temperature (C)
- -20
- Minimum Operating Temperature (F)
- -4
- NEMA Rating
- 6P
- O-Ring Material
- Viton
- Poles
- 3
- Standard Package Quantity
- 1
- Tab Info
- ROHS,TL APP,CRT,Knockout Dim,Coupling Nut Mtl,Cable Cross,Cable Jacket Mtl,IP Ratings
- Thread 1
- 7/8-16 UNS
- Thread 2
- 7/8-16 UNS
- UNSPC
- 32151904
- UPC
- 785411040350
- Voltage Rating (AC)
- 600
- Voltage Rating (DC)
- 600
- Width (in)
- 1
- Width (in) 2
- 1
- Wire Gauge
- 16 AWG
- Wiring Color Code
- Auto CC
