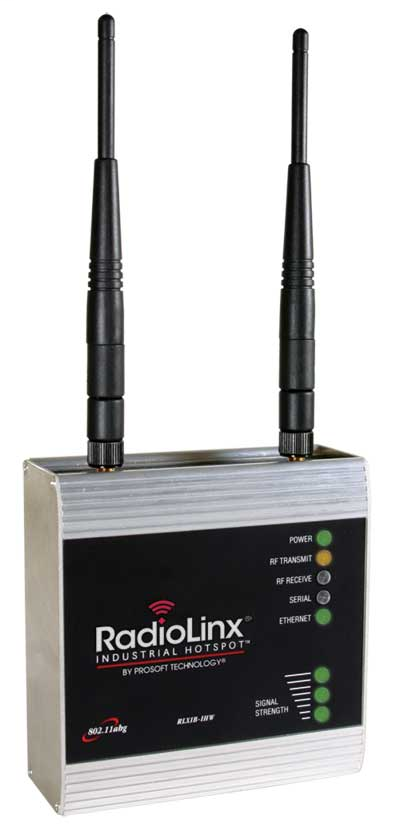

ProSoft RLXIB-IHW-A

Features and Benefits

• Backed by ProSoft Technology®
  • Indoor/outdoor radio network design assistance - accessory selection, path studies, and site survey
  • Three year standard warranty
  • Industrial data communications experts who understand your protocols, devices, and applications
• Conforms to IEEE 802.11g
  • Open standard protects wireless network investment
  • Radio-based IGMP snooping/querying to filter multicast industrial Ethernet maximizing bandwidth
  • High speed (54 Mbps), low latency communications
• Data and Network Security
  • Limit access to approved device MAC IDs
  • Cryptographic strength security with WPA2 - 802.11i with 128 bit AES encryption and CCM integrity check
• Easy to Configure and Monitor
  • Included OPC Server for HMI-based wireless network diagnostics
  • Built-in web server for browser-based configuration and remote diagnostics
• Flexible and Reliable
  • Single radio can be configured as an access point and repeater/bridge or as a client
  • Power over Ethernet (PoE) enables radio placement near antenna to reduce antenna cable costs and improve wireless network performance
  • User selectable automatic or manual network configuration with self-healing network and master redundancy for reliable large networks (e.g., SCADA)
• Rugged and Powerful
  • Metal enclosure, industrial operating temperatures, vibration and shock resistant
  • Certification approved for use in hazardous locations and explosive atmosphere (UL1604 Class I Div 2, ATEX Zone 2 Category 3)
  • Transmit power and radio frequencies programmable for use globally
• Serial Device Connectivity
  • Advanced features include multicast and Domain Name Server (DNS) support
  • Encapsulation / de-encapsulation of serial data to / from TCP or UDP packets

Specifications

• Channel data rates (Modulation)
  • 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps (OFDM)
  • 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps (OFDM)
  • (DSSS - BPSK, QPSK, CCK)
  • 802.11b: 11, 5.5, 2, 1 Mbps
• Channels Selection
  • 36, 40, 44, 48, 149, 153, 157, 161, 165 (802.11a)
  • 1 to 13 (802.11b/g)
• Frequency Band (Varies by country)
  • 2.412 to 2.462 GHz (FCC)
  • 5.150 to 5.250 GHz (FCC/ETSI)
  • 5.725 to 5.850 GHz (FCC)
  • 802.11b/g:
  • 802.11a:
  • 2.412 to 2.472 GHz (ETSI)
• Receiver Sensitivity (Typical)
  • -90 dBm @ 1 Mbps
  • -75 dBm @ 54 Mbps
  • -85 dBm @ 11 Mbps
  • -82 dBm @ 24 Mbps
• Security
  • Legacy WPA TKIP, WEP support
  • MAC ID filter
  • WPA2 - 802.11i with 128 bit AES-CCM
  • Admin password
• Transmit Power (Programmable) (varies by country)
  • Up to 500 mW with optional amplifier
  • Up to 50 mW without amplifier
• Wireless Standards
  • 802.11a, 802.11b, 802.11g, 802.11i
