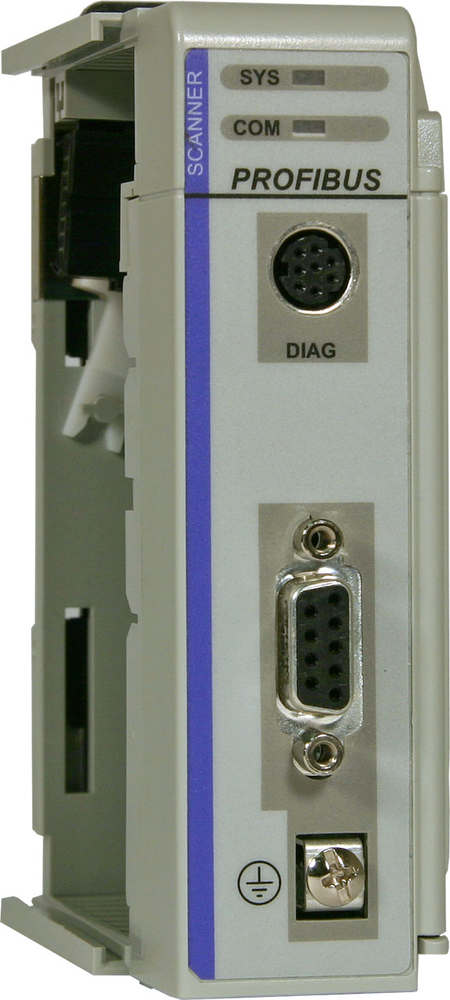

ProSoft PS69-DPM
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The PS69 PROFIBUS DP Master module expands the functionality of ’s CompactLogix / MicroLogix family of processors to include PROFIBUS. This module supports both I/O control and messaging, thus integrating DPV0 and DPV1 functionality into CompactLogix / MicroLogix. The PS69-DPM is a CompactLogix / MicroLogix compatible, PROFIBUS certified module, which enables controllers to communicate with a PROFIBUS network. The configuration and diagnostic of the PROFIBUS system is done via the serial diagnostic interface of the module using the System Configuration tool . The data exchange between controller and module is done via the I/O process data image using CompactLogix / MicroLogix backplane technology.
ProSoft Technology PS69-DPM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features and Benefits
- FDT configuration software and communication DTM included
- Module DTM will configure master module and network slave devices. The DTM can be used in many FDT compatible software containers
- PROFIBUS certified
- Recognized quality certification mark
- Sample ladder program
- Simplifies integration for quick and easy project start-up
- Supports CIP ladder logic messaging
- Request diagnostic, status and slave data based on ladder events. Offer better cyclic data performance
Specifications
- 12000
- 100 m / 325 ft
- 1500
- 200 m / 650 ft
- 187.5
- 1,000 m / 3280 ft
- 19.2
- 1,200 m / 4000 ft
- 3000
- 100 m / 325 ft
- 500
- 400 m / 1300 ft
- 6000
- 100 m / 325 ft
- 93.75
- 1,200 m / 4000 ft
- 9.6
- 1,200 m / 4000 ft
- Acyclic Data
- DPV1
- Baud rate in kBit/s
- Max. Distance
- Capacity
- < 30 pF/m
- Command data
- 16 Bytes
- DPV1 services
- Read / Write class 1, Alarm
- Impedance
- 135 to 65 Ohm
- Input Data
- Maximum 408 Bytes (*)
- Input/Output
- Maximum 244 Bytes per Slave
- Loop resistance
- 110 Ohm/km
- Output data
- Maximum 480 Bytes (*)
- Parameter
- Value
- Services
- Global-Control, Slave-Diag, Set-Parameter
- Slaves
- Maximum 125
- Specification
- Description
- Status data
- 88 Bytes
- Sync, Freeze Command
- Supported
- Wire gauge
- 0.64 mm
