ProSoft MVI56E-MCMR
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

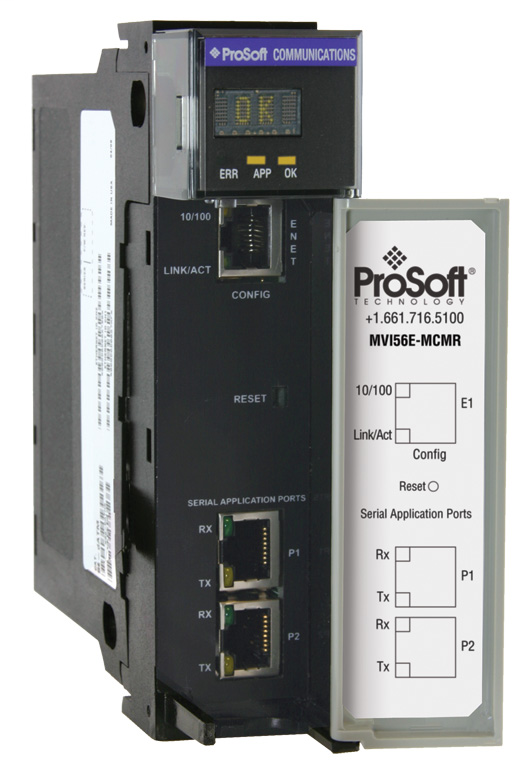

The MVI56E-MCMR Enhanced Modbus Master/Slave Communication Module with Reduced Data Block allows Rockwell Automation® ControlLogix® processors to easily interface with devices using the Modbus RTU/ASCII serial communications protocol. Compatible devices include a wide variety of instruments, process measurement devices, popular brands of programmable logic controllers (PLCs) and programmable automation controllers (PACs). The MVI56E-MCMR acts as an input/output module on the ControlLogix backplane, making Modbus data appear as I/O data to the processor. Backplane data transfers to and from the processor are asynchronous from communications on the Modbus network. Two independently-configurable serial ports can operate on the same or different Modbus networks. Each port can be configured as a Modbus Master or Slave, sharing the same user-controlled 5000-word database.
ProSoft Technology MVI56E-MCMR is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features and Benefits
- 4-digit LED display
- See critical configuration and status information without having to hook up to the ports
- Backward Compatibility
- All MVI56E products are backward-compatible allowing direct replacement of earlier MVI56 modules without the need to change existing controller programs
- Enjoy Enhanced features and flexibility without incurring expensive reprogramming costs
- CIPconnect-enabled
- ProSoft Configuration Builder software (PCB), with CIPconnect, facilitates remote user access across the ControlLogix backplane through Rockwell Automation's 1756-ENBT module
- CIPconnect can bridge through multiple ENBT/CNBT links to connect to MVI56E-MCMRs installed in remote chassis for configuration and diagnostics
- Configure, diagnose, and analyze process data and communications status
- Ethernet Port withBuilt-in Web Server
- Module Ethernet port provides a built-in web server for access to documentation, module status, firmware update software, and support software
- Local and remote configuration and diagnostics access available through the Ethernet Port
- Reduced Data Block
- Reduced Data Block implementation requires less backplane/network bandwidth
- Ideal solution for remote chassis installations using ControlNet and redundant controllers
- Smaller data blocks are easier to schedule and transfer on ControlNet networks
Specifications
- Mounting Method
- Chassis
- Platform
- CompactLogix
- Protocol
- Modbus
