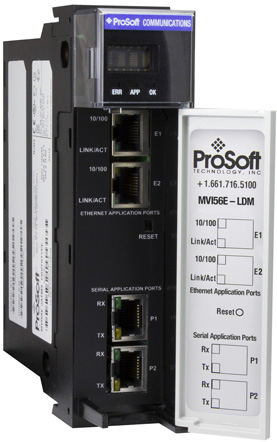

ProSoft MVI56E-LDM
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The MVI56E-LDM module is a ControlLogix® backplane compatible module that allows Rockwell Automation ControlLogix® processors to interface with relatively any Ethernet or serial device. With the available development kit DVD, you are the developer who controls exactly what this module can and cannot do. ProSoft Technology’s Linux Development Modules make it possible for users to easily develop and deploy C/C++ applications that interface with Bar Code Scanners, Legacy ASCII protocols, Terminal Port Emulation, Printer Drivers(Alarm/Status printer), or any other device requiring custom/proprietary Ethernet and serial communications.
ProSoft Technology MVI56E-LDM is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ethernet Ports
- 2 Ethernet Ports
- 10/100 Mbps ports, RJ45 Connector
- Not shipped with Unit
- Development Kit must be ordered separately
- LDMdevKit - Linux Development Module
- Serial Applications Ports
- RJ45 (DB-9M with supplied adapter cable) Configurable RS-232 hardware handshaking 500V Optical isolation from backplane RS-232, RS-422, RS-485 jumper-select, each port RX (Receive) and TX (Transmit) LEDs, each port
- Shipped with Unit
- RJ45 to DB-9M cables for each serial port 5 foot DB9 to screw terminal adapter Ethernet Straight-Thru Cable (Gray) ProSoft Solutions DVD
Hardware
- 4-Character, Scrolling, Alpha-Numeric LED Display
- Application driven – possible uses are: ModuleVersion, IP, Application Port Setting, Status/ErrorInformation
- Backplane Current Load
- 800 mA @ 5 Vdc
- Operating Temperature
- 0°C to 60°C (32°F to 140°F)
- Relative Humidity
- 5% to 95% (without condensation)
- Shock
- 30g operational
- Storage Temperature
- -40°C to 85°C (-40°F to 185°F)
Specifications
- Compact Flash
- 16GB max supported (not provided)
- CPU
- 400MHz ARM9 G20
- Flash Memory
- 256MB NAND Flash
- Linux Distribution
- Timesys
- Mounting Method
- Chassis
- Operating System
- Linux (kernel 2.6.33.7)
- Platform
- ControlLogix
- System Memory
- 64MB SDRAM
