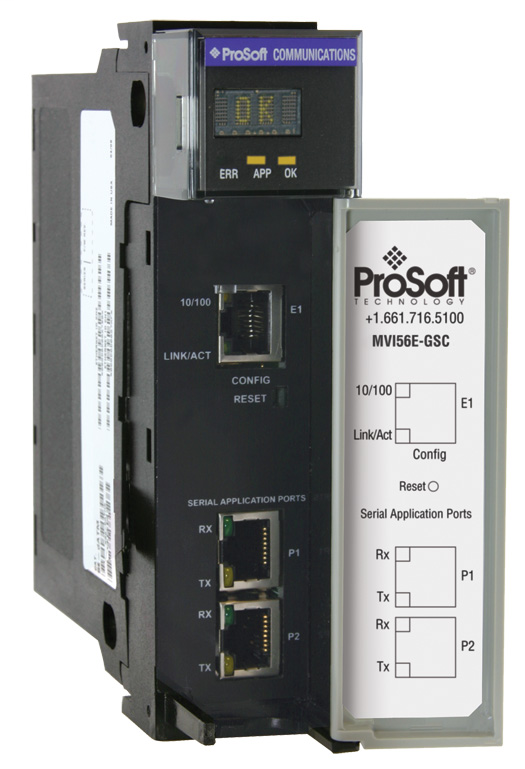

ProSoft MVI56E-GSC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Generic ASCII Serial Enhanced Communication Modules allow Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to easily interface with serial devices using non-specific ASCII character text string or byte value serial communication protocols. MVI56E-GSC enhancements include local and remote diagnostics through the module's Ethernet port, CIPconnect technology for bridging through Rockwell Automation ControlNet and EtherNet/IP networks, and an on-board web server containing status information, module documentation, and sample program files. The MVI56E-GSC module is a fast and easy way to add two fully configurable serial communication ports to the ControlLogix platform, eliminating the need to use the front port of the processor or to consume valuable processing time sending and receiving serial messages. The module is a single-slot, backplane-compatible solution. Each port is capable of sending and receiving large ASCII character strings or byte streams of up to 4096 characters or bytes. Many different serial communication devices can be integrated into the ControlLogix platform by building upon the sample ladder logic provided for this module.
ProSoft Technology MVI56E-GSC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features and Benefits
- Backward-Compatible
- MVI56E products are backward-compatible with existing ladder logic, allowing for a smooth transition when upgrading from the earlier version MVI56-GSC product.
- ProSoft Configuration Builder Graphical User Interface Software
- Provides online diagnostics using the high-speed Ethernet port
- CIPconnect-enabled, allows remote diagnostic access across multiple bridged EtherNet/IP and ControlNet networks using Rockwell Automation 1756-ENxT and 1756-CNB network interface modules
- RSLogix 5000 Integrated
- Module communication is integrated within RSLogix 5000 using a sample Add-On Instruction (AOI), or sample ladder logic file
- The module is configured with the sample ladder logic controller tags
- Web-enabled Ethernet port with Discovery Service
- ProSoft Discovery Service, a software utility to locate MVI56E modules on the network and assign a temporary IP address for easy configuration
- Module's built-in Ethernet port provides a web server for local access to documentation, module status, and firmware updates
Specifications
- Mounting Method
- Chassis
- Platform
- ControlLogix
- Protocol
- Serial ASCII
