Description

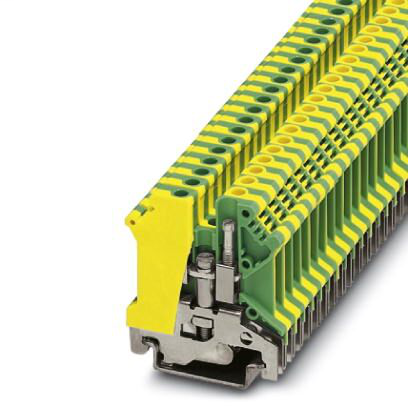

Ground modular terminal block, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, width: 6.2 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15, NS 32Ground modular terminal block - USLKG 5 - 0441504
Phoenix Contact 0441504 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection data
- 2 conductors with same cross section, solid max.
- 1.5 mm²
- 2 conductors with same cross section, solid min.
- 0.2 mm²
- 2 conductors with same cross section, stranded max.
- 1.5 mm²
- 2 conductors with same cross section, stranded min.
- 0.2 mm²
- Conductor cross section AWG max.
- 12
- 10
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 4 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.
- 4 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.
- 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.
- 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.
- 0.25 mm²
- Conductor cross section solid max.
- 6 mm²
- 4 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection in acc. with standard
- IEC/EN 60079-7
- IEC 60947-7-2
- Connection method
- Screw connection
- Max. AWG conductor cross section, flexible
- 12
- Min. AWG conductor cross section, flexible
- 24
- Note
- Please observe the current carrying capacity of the DIN rails.
- Screw thread
- M3
- Stripping length
- 8 mm
- Tightening torque max
- 0.8 Nm
- Tightening torque, min
- 0.6 Nm
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum
- 2.5 mm²
- Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum
- 0.5 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum
- 1.5 mm²
- Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum
- 0.25 mm²
Dimensions
- Height NS 32
- 52 mm
- Height NS 35/15
- 54.5 mm
- Height NS 35/7,5
- 47 mm
- Length
- 42.5 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Connection in acc. with standard
- CSA
- IEC 60947-7-2
- Flammability rating according to UL 94
- V0
