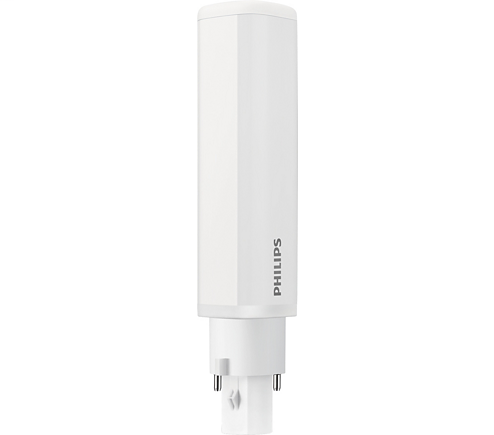

Philips 929001201402
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Philips Lighting 929001201402 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approval and Application
- Energy Consumption kWh/1000 h
- 9 kWh
- Energy Efficiency Label (EEL)
- A+
- Energy Saving Product
- Yes
Controls and Dimming
- Dimmable
- No
General Information
- B50L70
- 30000 h
- Cap-Base
- G24D-2 [ G24d-2]
- Nominal Lifetime (Nom)
- 30000 h
- Switching Cycle
- 50000X
Light Technical
- Color Code
- 830 [ CCT of 3000K]
- Color Consistency
- <6
- Color Rendering Index (Nom)
- 83
- Correlated Color Temperature (Nom)
- 3000 K
- LLMF At End Of Nominal Lifetime (Nom)
- 70 %
- Luminous Flux (Nom)
- 650 lm
- Luminous Flux (Rated) (Nom)
- 650 lm
Mechanical and Housing
- Product Length
- 100 mm
Operating and Electrical
- Input Frequency
- 50 to 60 Hz
- Lamp Current (Max)
- 35 mA
- Lamp Current (Min)
- 25 mA
- Power Factor (Nom)
- 0.9
- Power (Rated) (Nom)
- 6.5 W
- Starting Time (Nom)
- 0.5 s
- Voltage (Nom)
- 220-240 V
- Warm Up Time to 60% Light (Nom)
- 0.5 s
Product Data
- EAN/UPC - Product
- 8718696541272
- Full product code
- 871869654127200
- Material Nr. (12NC)
- 929001201402
- Net Weight (Piece)
- 0.077 kg
- Numerator - Packs per outer box
- 10
- Numerator - Quantity Per Pack
- 1
- Order code
- 929001201402
- Order product name
- CorePro LED PLC CorePro LED PLC 6.5W 830 2P G24d-2
Temperature
- T-Ambient (Max)
- 35 °C
- T-Ambient (Min)
- -20 °C
- T-Case Maximum (Nom)
- 65 °C
- T-Storage (Max)
- 65 °C
- T-Storage (Min)
- -40 °C
