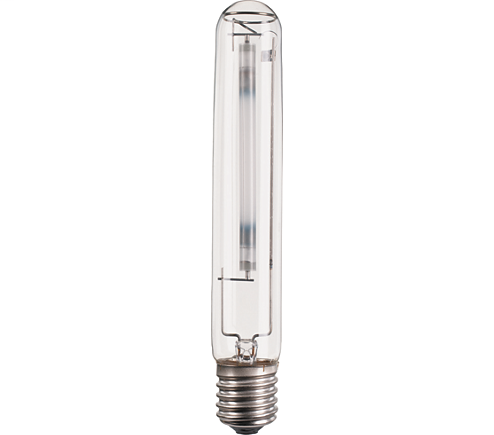

Philips 928144809227
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Philips Lighting 928144809227 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approval and Application
- Energy Consumption kWh/1000 h
- 440 kWh
- Energy Efficiency Label (EEL)
- A++
- Mercury (Hg) Content (Nom)
- 20 mg
Controls and Dimming
- Dimmable
- Yes
- Run-Up Time 90% (Max)
- 5 min
General Information
- Cap-Base
- E40 [ E40]
- Life to 10% Failures (Nom)
- 24000 h
- Life to 20% Failures (Nom)
- 28000 h
- Life to 50% Failures (Nom)
- 36000 h
- Life to 5% Failures (Nom)
- 20500 h
- LSF 12000 h Rated
- 99 %
- LSF 16000 h Rated
- 98 %
- LSF 20000 h Rated
- 95 %
- LSF 2000 h Rated
- 100 %
- LSF 4000 h Rated
- 99 %
- LSF 6000 h Rated
- 99 %
- LSF 8000 h Rated
- 99 %
- Operating Position
- UNIVERSAL [ Any or Universal (U)]
- System Description
- External Ignitor
Light Technical
- Chromaticity Coordinate X (Nom)
- 525
- Chromaticity Coordinate Y (Nom)
- 425
- Color Code
- 220 [ CCT of 2000K]
- Color Rendering Index (Max)
- 25
- Correlated Color Temperature (Nom)
- 2000 K
- LLMF 12000 h Rated
- 92 %
- LLMF 16000 h Rated
- 90 %
- LLMF 20000 h Rated
- 88 %
- LLMF 2000 h Rated
- 99 %
- LLMF 4000 h Rated
- 97 %
- LLMF 6000 h Rated
- 96 %
- LLMF 8000 h Rated
- 94 %
- Lumen Maintenance 20000 h
- 88 %
- Lumen Maintenance 2000 h (Min)
- 95 %
- Lumen Maintenance 2000 h (Nom)
- 99 %
- Lumen Maintenance 5000 h (Min)
- 90.5 %
- Lumen Maintenance 5000 h (Nom)
- 96.5 %
- Luminous Efficacy (Rated) (Nom)
- 137 lm/W
- Luminous Flux (Rated) (Nom)
- 55800 lm
- Ratio Scotopic/Photopic Lumens
- 0.60
Luminaire Design Requirements
- Bulb Temperature (Max)
- 450 °C
- Cap-Base Temperature (Max)
- 250 °C
Mechanical and Housing
- Bulb Finish
- Clear
Operating and Electrical
- Ignition Peak Voltage (Max)
- 2800 V
- Ignition Supply Voltage (Max)
- 198 V
- Ignition Time (Max)
- 10 s
- Lamp Current (EM) (Nom)
- 4.5 A
- Power (Rated) (Nom)
- 400.0 W
- Re-Ignition Time (Min) (Max)
- 120 s
- Voltage (Max)
- 115 V
- Voltage (Min)
- 85 V
- Voltage (Nom)
- 100 V
Product Data
- EAN/UPC - Product
- 8711500179883
- Full product code
- 871150017988315
- ILCOS Code
- ST-400-H/E-E40
- Material Nr. (12NC)
- 928144809227
- Net Weight (Piece)
- 0.180 kg
- Numerator - Packs per outer box
- 12
- Numerator - Quantity Per Pack
- 1
- Order code
- 928144809227
- Order product name
- MASTER SON-T PIA Plus 400W E E40 1SL/12
Williams Automation sells Philips parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
