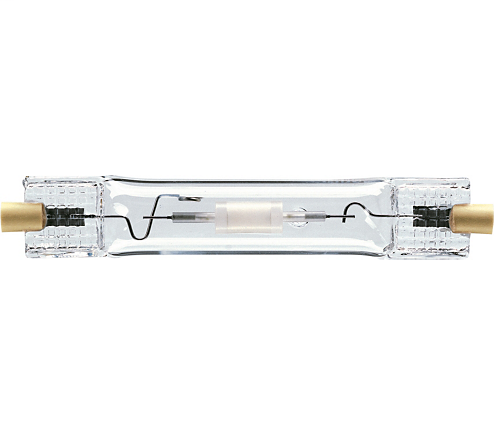

Philips 928082205125
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Philips Lighting 928082205125 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approval and Application
- Energy Consumption kWh/1000 h
- 78 kWh
- Energy Efficiency Label (EEL)
- A
- Mercury (Hg) Content (Nom)
- 3.4 mg
Controls and Dimming
- Dimmable
- No
- Run-Up Time 90% (Max)
- 3 min
General Information
- ANSI Code HID
- C139/E
- Cap-Base
- RX7S [ RX7s]
- Life to 10% Failures (Nom)
- 13000 h
- Life to 20% Failures (Nom)
- 15000 h
- Life to 50% Failures (Nom)
- 16000 h
- Life to 5% Failures (Nom)
- 9000 h
- Operating Position
- P45 [ Parallel +/-45D or Horizontal(HOR)]
Light Technical
- Chromaticity Coordinate X (Nom)
- 0.443
- Chromaticity Coordinate Y (Nom)
- 0.401
- Color Code
- 830 [ CCT of 3000K]
- Color Designation
- Warm White (WW)
- Color Rendering Index (Min)
- 77
- Color Rendering Index (Nom)
- 80
- Correlated Color Temperature (Nom)
- 3000 K
- Lumen Maintenance 10000 h (Nom)
- 70 %
- Lumen Maintenance 2000 h (Min)
- 80 %
- Lumen Maintenance 2000 h (Nom)
- 85 %
- Lumen Maintenance 5000 h (Min)
- 70 %
- Lumen Maintenance 5000 h (Nom)
- 80 %
- Luminous Efficacy (Rated) (Nom)
- 85 lm/W
- Luminous Flux (Nom)
- 6000 lm
- Luminous Flux (Rated) (Nom)
- 6000 lm
Luminaire Design Requirements
- Bulb Temperature (Max)
- 500 °C
- Pinch Temperature (Max)
- 280 °C
Mechanical and Housing
- Bulb Finish
- Clear
Operating and Electrical
- Ignition Peak Voltage (Max)
- 5000 V
- Ignition Supply Voltage (Max)
- 198 V
- Ignition Supply Voltage (Min)
- 198 V
- Ignition Time (Max)
- 30 s
- Lamp Current (EM) (Nom)
- 0.95 A
- Lamp Current Run-Up (Max)
- 1.4 A
- Power (Rated) (Nom)
- 71.0 W
- Re-Ignition Time (Min) (Max)
- 15 min
- Voltage (Max)
- 102 V
- Voltage (Min)
- 86 V
- Voltage (Nom)
- 94 V
Product Data
- EAN/UPC - Product
- 8711500197825
- Full product code
- 871150019782515
- ILCOS Code
- MD/UB-70/830-H-RX7s-22/117.6
- Material Nr. (12NC)
- 928082205125
- Net Weight (Piece)
- 21.000 g
- Numerator - Packs per outer box
- 12
- Numerator - Quantity Per Pack
- 1
- Order code
- 928082205125
- Order product name
- MASTERColour CDM-TD 70W/830 RX7s 1CT/12
UV
- Damage Factor D/fc (Max)
- 0.3
- Pet (Niosh) (Min)
- 8 h/500lx
